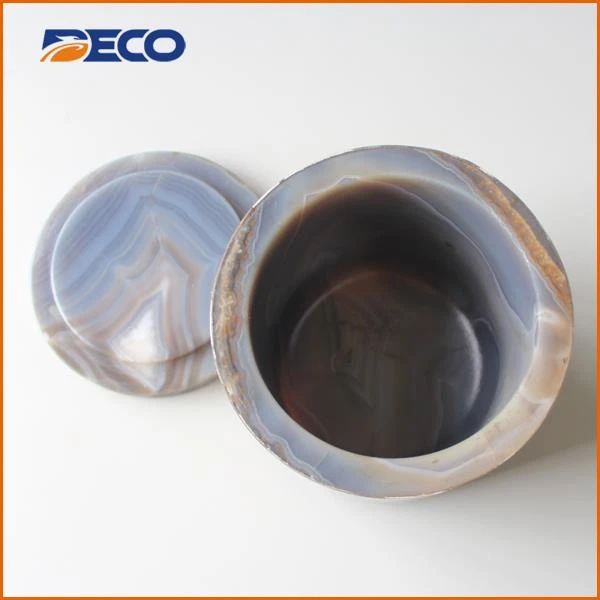

Agate Ball Mill Jar

agate ball mill jar General Description Specifications High purity natural Brazilian agate (99.91% SiO2) ball mill grinding jars, highly wear-resistant and resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination....

Products Specifications:

agate ball mill jar

General Description


Specifications
High purity natural Brazilian agate (99.91% SiO2) ball mill grinding jars, highly wear-resistant and resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be grinded without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate grinding balls. The grinding jars are extensively applied to in the fields of Ceramics, Electronics, Light Industry, Paint, Ink, Medicine, Food, Geology, Chemical Engineering and so on.


Technical Data

Model No.

DECO-SIO-(0.05L~2L)

Main Material

SiO2

Density

2.7kg/dm3

Jar Volume

50ml/100ml/150ml/250ml/300ml/400ml/500ml/1000ml/2000ml

Shape

cylindrical

Dimension

as requested

Hardness

6.5~7.0 Mohs

Suitable For

soft to medium-hard samples

Abrasion Resistance

good

Compatible Grinding Ball

mixed agate ball (3mm~20mm)


Features
1. High purity, low contamination to the samples
2. High cost-effective, low wear and long lifetime
3. High specific gravity, high grinding efficiency
4. Highly wear resistant to acid and solvent
5. Highly polished, smooth, easy to clean, low abrasion to the equipment
6. High mechanical strength, good toughness, impact resistance, no broken beads
7. Mainly used for lab planetary ball mill machines


Element Analysis

General Specifications

Main Material

agate -SiO2


Chemical Composition

Element

Share %


Silicon Oxide -SiO2

99.91


Aluminium Oxide -Al2O3

0.20


Iron Oxide -Fe2O3

0.01


Calcium Oxide -CaO

0.01


Magnesium -Mg

0.01


Sodium Carbonate -Na2O

0.20


Potassium Carbonate -K2O

0.01


Manganese Oxide -MnO

0.01



Physical and Mechanical Properties

Specific Gravity

2.7kg/dm3

Hardness

6.5~7 Mohs

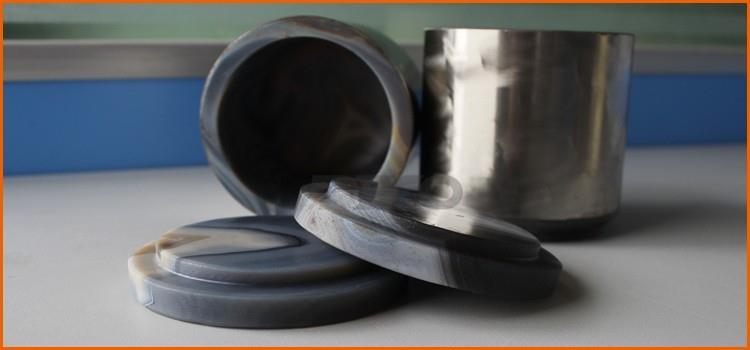

Photo Show




Choice of Grinding Jars & Balls
In order to prevent excessive avrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be choosen. For example, 250ml agate ball mill jar, normally is matched with 250g mixed agate grinding balls. However, the size of grinding jars and grinding balls should be determined experimentally if necessary.


Related Equipments
Ball Mill


 Ball Mill Jar


 Grinding Ball
