PTFE Ball Mill Jar Bowl

PTFE ball mill jar bowl Description: Polytetrafluoroethylene (Teflon or PTFE), commonly named as “Plastic King", is a kind of high molecular compound by the polymerization of ethylene tetrafluoroethylene. It has an excellent features such as chemical stability, corrosion resistance,...

Products Specifications:

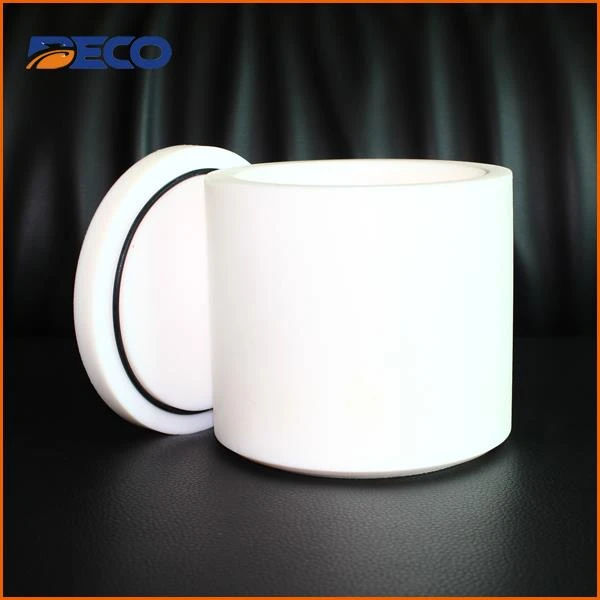

PTFE ball mill jar bowl

Description:
Polytetrafluoroethylene (Teflon or PTFE), commonly named as “Plastic King", is a kind of high molecular compound by the polymerization of ethylene tetrafluoroethylene. It has an excellent features such as chemical stability, corrosion resistance, sealing, high viscosity and lubrication, electric resistance and good anti-aging endurance insulation. DECO PTFE mill jar is designed professionally, and is made from high quality PTFE material by integrated forming process.

Highly non-sticky PTFE jars. These jars are used whenever small quantity of samples needs to be grinded/milled without contamination. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed sizes of zirconia grinding balls.


General Specification
Item No. : DECO-PTFE-500ml
Material : PTFE /Teflon
Jar Volume : 100ml, 250ml, 500ml, 1L,2L, 5L
Density : 2.14g/cm3
Abrasion Resistance : Very good
Attachment : lid and seal ring (Grind balls should be ordered separately)
Grind Balls : PTFE ball /PA ball /Zirconia ball /Alumina ball /304 Stainless Steel ball
Suitable for : caustic, abrasive samples

Photo Show





Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.

Gringing Jar Ball Configurations

Grinding Jar Volume

100ml

250ml

500ml

1000ml

Compatible Ball Weight

84g

210g

420g

840g

Φ5mm zirconia balls  (0.39 g/pc)

65 pcs

162 pcs



Φ10mm zirconia balls (3.17 g/pc)

16 pcs

40 pcs

40 pcs

80 pcs

Φ15mm zirconia balls (10.71 g/pc)

1 pc

2 pcs

24 pcs

47 pcs

Φ20mm zirconia balls (25.39 g/pc)



2 pcs

4 pcs

These values are just clues: the number of balls should be determined experimentally if necessary.

 Assembling



Related Grinding Equipments





 The milling jar / tank optional :
 The milling ball optional :
