Alumina Grinding Mill Jars

Alumina grinding mill jars Description: Corundum is mainly used for grinding advanced materials. Though the corundum has a strong hardness, it is also fragile, please prevent falling to the ground and high strength impact behavior when using it. We can customize various types of vacuum jar...

Products Specifications:

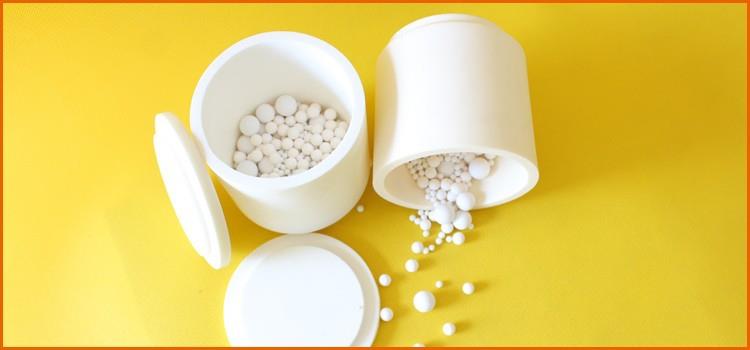

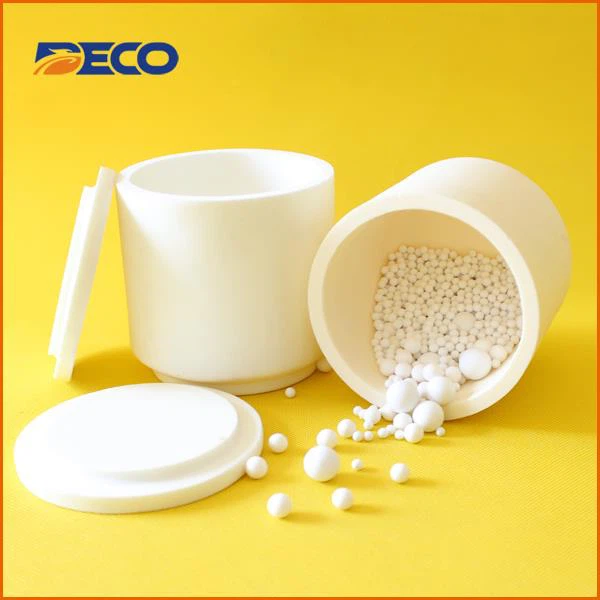

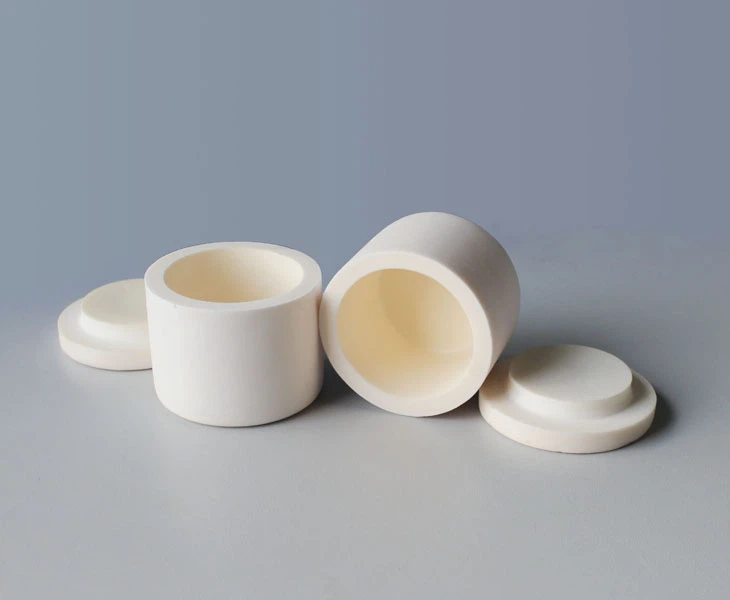

Alumina grinding mill jars

Description:
Corundum is mainly used for grinding advanced materials. Though the corundum has a strong hardness, it is also fragile, please prevent falling to the ground and high strength impact behavior when using it. We can customize various types of vacuum jar according to customer’s needs.

Item No. : DECO-ALO-0.5L
Material : Alumina Ceramic /Sintered Corundum
Jar Volume : 500ml
Dimension: Outer diameter:106mm  Height:110mm
Density : 3.8g/cm3
Abrasion Resistance : Fairly good
Attachment : lid and seal ring (Grind balls should be ordered separately)
Grind Balls : Alumina ball /Zirconia ball /PA ball /304 Stainless Steel ball
Suitable for : medium-hard, fibrous samples


Al2o3 content:

95%

Rockwell hardness

≥80, impact resistance

Water absorption

≤0.02

Vol.density

≥3

Wear-resistance coefficient

≤0.9

Application

Electrical ceramic, magnetic material, pigment and dope, special cement, porcelain enamel and glaze

Al2O3 grinding mill jar:

Item NO.

DECO-ALO-(0.1L-5L)

Material

aluminum ceramic- Al2O3

Jar volume

100ml to 5000ml

Max loading capacity

2/3 capacity of the grinding jar

Density

3.8g/cm3

Color & Shape

Ivory white & Cylindrical

Hardness

>80 HRA

Abrasion resistance

fairly good

Suitable for

medium-hard, fibrous samples

Attachment

lid and rubber sealing gasket

Grind ball

alumina ceramic balls (should be ordered seperately)

Grinding ball size

5/ 10/ 15/ 20mm available



Choice of grinding jars& grinding balls:
In order to prevent excessive abrasion, the hardness of the grinding jars and balls should be higher than the material used. Normally, the same material of grinding jars and balls shoule be chosen.

 Grinding balls configurations:

Grinding jar volume

100ml

250ml

500ml

1000ml

Compatible ball weight

66g

165g

330g

660g

Φ5mm grinding balls  (0.25 g/pc)

106pcs

300pcs



Φ10mm grinding balls (1.99 g/pc)

20pcs

76pcs

50pcs

100pcs

Φ15mm grinding balls (6.72 g/pc)


4pcs

30pcs

59pcs

Φ20mm grinding balls (15.92 g/pc)



3pcs

5pcs

Above valuea are estimated, the accurate number of the balls should be determined experimentally if necessary.



Applications:
These grinding jars are used whenever small quantity of samples need to be grinded. They are extensively applied to in the fields of Paint, Ink, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed alumina ceramic grinding balls.

Related grinding equipment:





Other Grinding mill jars for choice:
Related Grinding Balls:

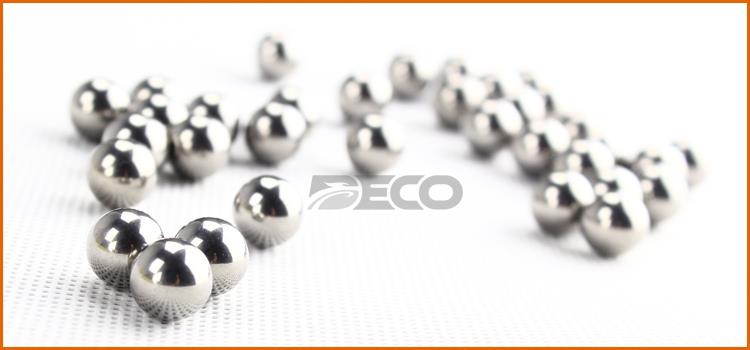

Alumina grinding balls


 Stainless steel grinding balls


 Zirconium Oxide grinding balls


Shipment:
1) Deliver by international express, DHL, UPS, EMS, etc
By air or by sea is available.
2) When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 7 days once your payment is completed.
3) We do not guarantee delivery time on international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery.
4) The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
Company Profile:
With over 5years experience of manufacturing and sale, the company has been supplying its laboratory ball mills to leading universities, research institutions, manufacturing units and various labs where small level of grinding and mixing jobs are required. Our continuous innovation in the field of manufacturing lab ball mills guarantees our customers satisfaction in mind. If you are looking to buy a lab scale ball mill, consider DECO, reasonable priced and high quality grinding machines that are supplied all over the world.
