10L Laboratory Grinding Mill

10L laboratory grinding mill Ball mill is a grinder for reducing hard materials to powder. A ball mill grinds material by rotating a cylinder with balls causing the balls to fall back into the cylinder and onto the material to be ground. The cylinder rotates at a relatively slow speed, allowing...

Products Specifications:

10L laboratory grinding mill
Ball mill is a grinder for reducing hard materials to powder. A ball mill grinds material by rotating a cylinder with balls causing the balls to fall back into the cylinder and onto the material to be ground.

The cylinder rotates at a relatively slow speed, allowing the balls to cascade through the mill base, thus grinding or
dispersing the materials. Ball mills are generally used to grind material 7mm and finer, down to the particle size of 20 to75 microns.


Features:
Tight structure, easy operation.
High efficiency, uniform granularity.
Different diameter jars can be put by adjusting rubber roller.
Both dry and wet grinding, convenient to change a jar.


Specifications:

Item No.

DECO-JM-1*10L/15L

Grinding Mode

Wet/Dry

Structure

Single tier

Frame

Welded steel with PU coating

Grinding Tools

Horizontal Grinding Jar

No. of Working Station

1

Grinding Jar Volumes

5L-15L or as requested

Max Feed Size (depend on material)

7mm

Final Fineness (depend on material)

20um

Electrical Details

220VAC, 50Hz ,1.5KW

Speed

40-340rpm±10


Products Details

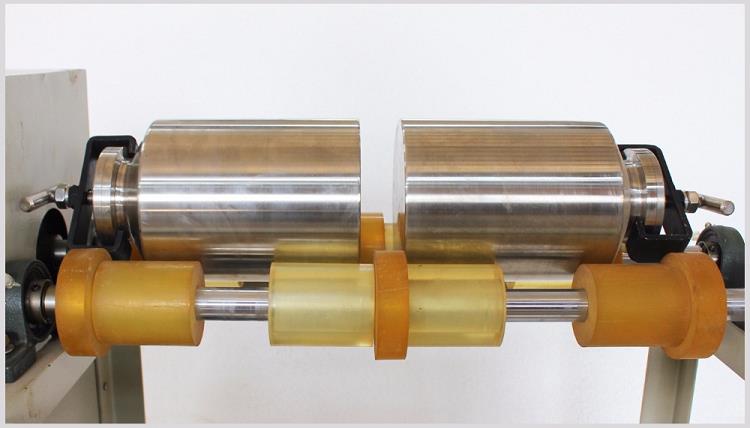

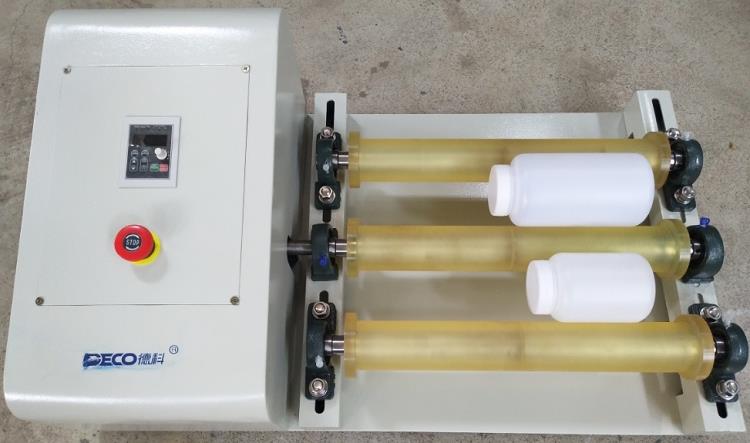

For different capacity: The rotation axis can be adjusted freely to apply for different size jars. 1-5L,10L jars for chosen.

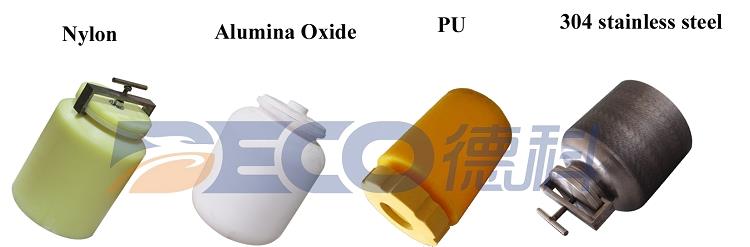

For different material milling: Different material jars for choice. Easy to exchange.



Varies materials of milling tanks

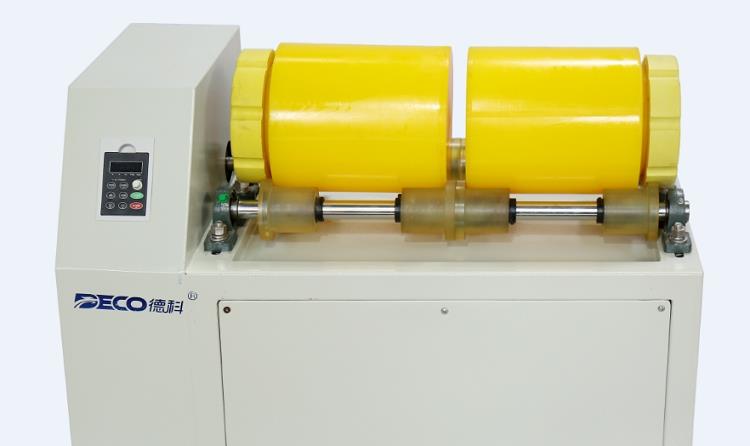

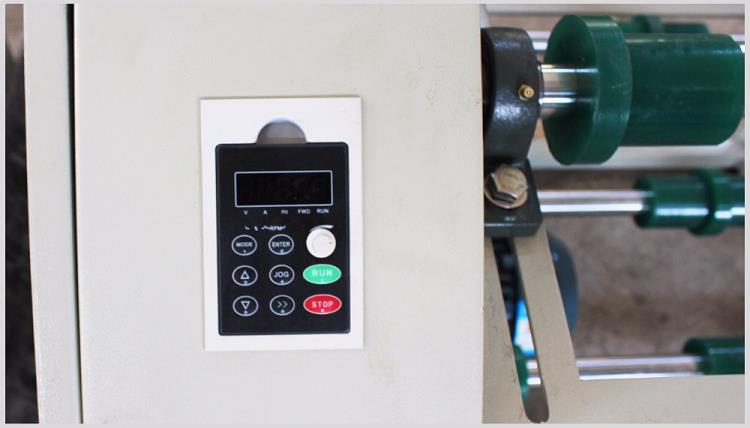

For different rotation speed: With frequency converter equipped. Rotation speed adjustable as experiment required. Axis rotation speed can reach 410 rpm maximum.




Packing:
Standard exported polywood case


Shipping:
By FedEx/DHL/UPS/TNT door to door service.
By Air or By sea for batch goods
Customers specifying freight forwarders or negotiable shipping methods are available.
