40L Lab Roller Mill

40L lab roller mill Features Ideal for R & D and small production runs, for grinding laboratory or high-purity samples Single or multi-tier design, two or four ball grinding jars per tier Jars of different sizes and materials can be used simultaneously to save horizontal space Multiple...

Products Specifications:

40L lab roller mill
Features
Ideal for R & D and small production runs, for grinding laboratory or high-purity samples
Single or multi-tier design, two or four ball grinding jars per tier
Jars of different sizes and materials can be used simultaneously to save horizontal space
Multiple samples can be ground simultaneously
No cross-contamination between samples
Select your speed range from 50 to 405 rpm with front control knob
Easily adjustable rollers and brackets to accommodate different jar diameters
Reliable for continuous powder processing
Each mill features a high-quality, powder-coated finish that protects the exterior from oils, solvents, and chemicals
Automatic leveling feet allow easy installation
Epoxy powder painted shaped sheet steel structure
Quiet and smooth operation
No strict weight balancing required

Areas of Application
For size reduction of ceramics, semi-conductors, rare-earth metals, mineral assay, nutraceuticals, pharmaceuticals, cosmetics and general chemicals
In research institutions, universities and even industrial production for mixing, homogenization and dispersion up to 0.1 micron
For mining, agriculture, metallurgy, electronics, materials, chemical, ink, pharmaceutical, cosmetics, food, construction, resin and nuclear industries


2 Work Station

Model

DECO-PM-2*5L

DECO-PM-2*10L

DECO-PM-2*15L

Power (KW)

0.37

1.1

1.1

Frequency Transformer

0.75KW/220V

1.5KW/220V

1.5KW/220V

Rotation Speed(r/min)

50-410

40-340

40-340

Roll shalf length(mm)

609


762

Maximum Laod(KG)

35


80

Size(mm)

881*440*680


940*550*680


4 Work Station

Model

DECO-PM-4*5L

DECO-PM-4*10L

DECO-PM-4*15L

Power (KW)

0.75

1.5

1.5

Frequency Transformer

0.75KW/220V

1.5KW/220V

1.5KW/220V

Rotation Speed(r/min)

50-410

40-340

40-340

Roll shalf length(mm)

609


762

Maximum Laod(KG)

35


80

Size(mm)

881*660*680


940*800*680


8 Work Station

Model

DECO-PM-8*5L

DECO-PM-8*10L

DECO-PM-8*15L

Power (KW)

1.5

2.2

2.2

Frequency Transformer

1.5KW/220V

2.2KW/380V

2.2KW/380V

Rotation Speed(r/min)

50-410

40-390

40-390

Roll shalf length(mm)

609

700

762

Maximum Laod(KG)

35

60

80

Size(mm)

881*660*950

900*736*950

940*800*950


Products Details

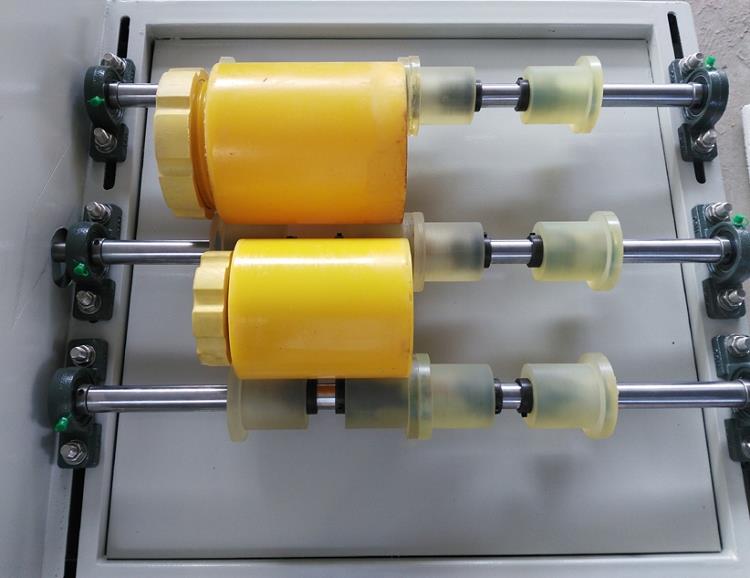

For different capacity: The rotation axis can be adjusted freely to apply for different size jars. 1-5L,10L jars for chosen.


For different material milling: Different material jars for choice. Easy to exchange.

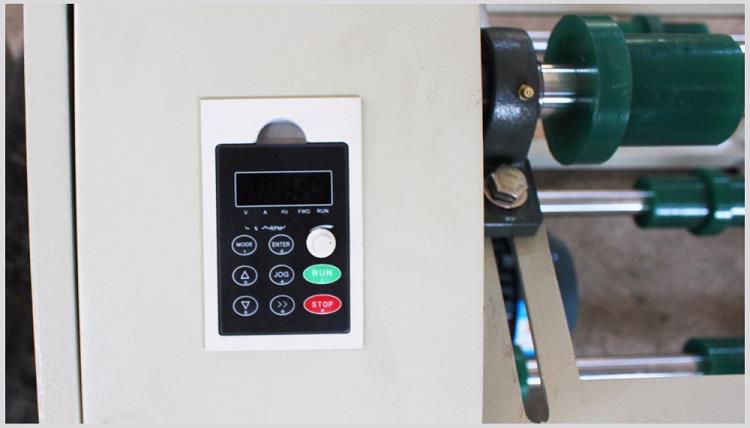

For different rotation speed: With frequency converter equipped. Rotation speed adjustable as experiment required. Axis rotation speed can reach 340 rpm maximum.

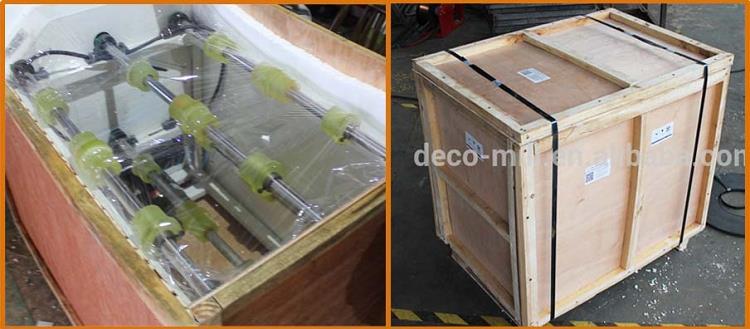

Packing:
Standard Exported Polywood case


Company Profile:
With over 5years experience of manufacturing and sale, the company has been supplying its laboratory ball mills to leading universities, research institutions, manufacturing units and various labs where small level of grinding and mixing jobs are required. Our continuous innovation in the field of manufacturing lab ball mills guarantees our customers satisfaction in mind. If you are looking to buy a lab scale ball mill, consider DECO, reasonable priced and high quality grinding machines that are supplied all over the world.
