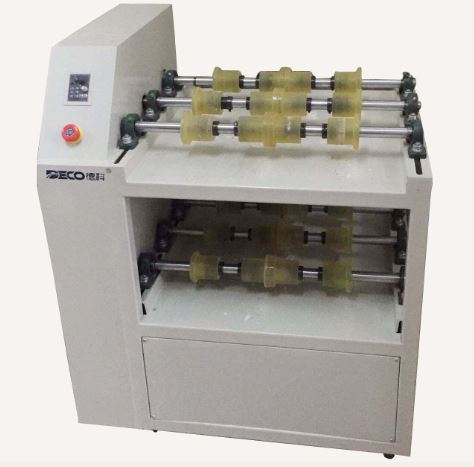

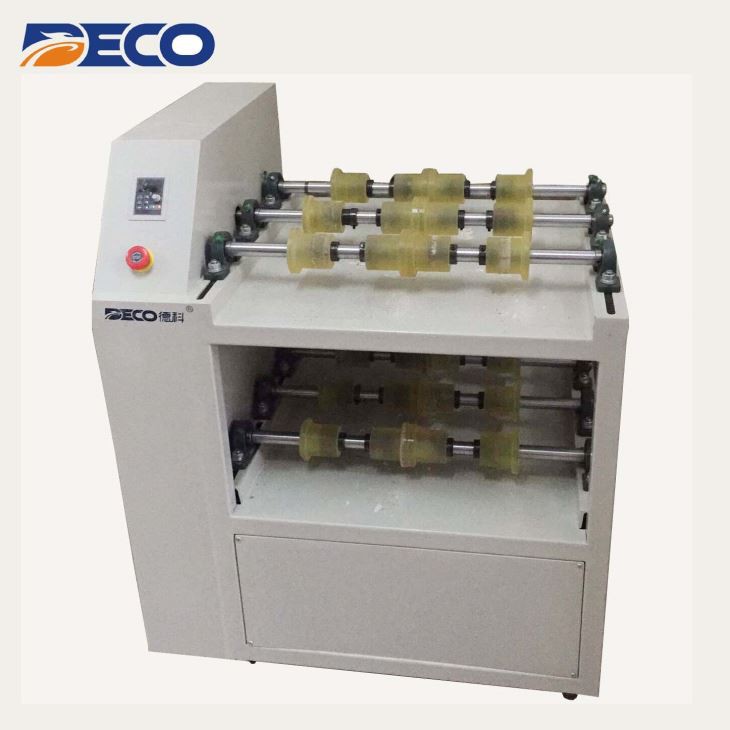

Good Performance Small Vibration Roll Ball Mill

Good Performance Small Vibration Roll Ball Mill

80L roll ball mill Ball mill is a grinder for reducing hard materials to powder. A ball mill grinds material by rotating a cylinder with balls causing the balls to fall back into the cylinder and onto the material to be ground. The cylinder rotates at a relatively slow speed, allowing the balls...

Products Specifications:

Product Description

Good Performance Small Vibration Roll Ball Mill is a grinder for reducing hard materials to powder. A ball mill grinds material by rotating a cylinder with balls causing the balls to fall back into the cylinder and onto the material to be ground.

The cylinder rotates at a relatively slow speed, allowing the balls to cascade through the mill base, thus grinding or

dispersing the materials. Ball mills are generally used to grind material 7mm and finer, down to the particle size of 20 to75 microns.

Specifications:

Item No.

DECO-JM-8*10L

Grinding Mode

Wet/Dry

Structure

Two Tiers

Frame

Welded steel with PU coating

Grinding Tools

Horizontal Grinding Jar

No. of Working Station

8

Grinding Jar Volumes

5L-10L or as requested

Max Feed Size (depend on material)

7mm

Final Fineness (depend on material)

20um

Electrical Details

380VAC, 2.2KW

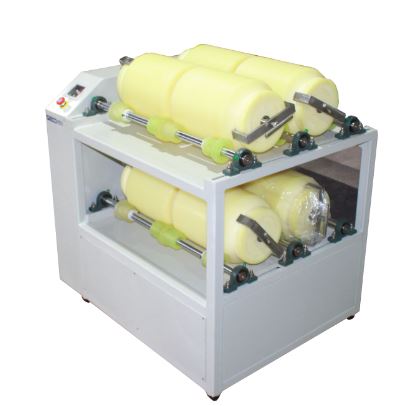

Products Details:

For different material milling: Different material jars for choice. Easy to exchange.

For different rotation speed: With frequency converter equipped. Rotation speed adjustable as experiment required. Axis rotation speed can reach 340 rpm maximum.

Work Station

Model

DECO-PM-2*5L

DECO-PM-2*10L

DECO-PM-2*15L

Power (KW)

0.37

1.1

1.1

Frequency Transformer

0.75KW/220V

1.5KW/220V

1.5KW/220V

Rotation Speed(r/min)

50-410

40-340

40-340

Roll shalf length(mm)

609


762

Maximum Laod(KG)

35


80

Size(mm)

881*440*680


940*550*680

Features

  1. Suitable for hard and soft materials with Mohs' hardness<7

  2. Compared to ball mill, air-stream mill and impacting mill, it has low investment cost, low energy consumption, simple flow, high efficiency andreasonable price.

  3. Particle size can be changed by adjusting quantities of feed materials, amplitudeof vibration and grinding media' s grades. To form series connection with classifier to get products with narrower size distribution.

  4. Grinding Medias and scale-board are made of high manganese steel, high cadmium steel stainless steel,and quartz materials. Wear resistance and no pollution.

  5. To crush heat- sensitive and low melting point materials by the method of water cooling or strong refrigeration system.

  6. To use single machine to change products' nature and finish its mixture during crushing.

  7. According to materials' nature, to adopt dry mill, wet mill, continuous mill or intermittent mill.

  8. According to GMP, used in dugs, herbal medicine, food, health-care. Or research institutes and Lab.

  9. To adopt air spring or rubber spring instead of hard spring. Long life, good vibration absorbing results and low noises.

Advantages:

  • Easy to operation

  • Fineness of final product is adjustable and can be more fine

  • Easy to clean without dead space

  • Widely application, low investment

  • Without easy destroyed spare parts

 Detail Application

  • Ceramic

  • Pigment. (Paint/ink/color/coating)

  • Agriculture. (Tea / Chinese herb / plant / Coffee beans / etc)

  • Pharmaceutical production (Medicine/Drug)

  • Solid waste treatment. (Soil / metal / Plastic)

  • Mine. (Ore/stone/metal/litharge/lithium/alumina/coal/chrome/graphite/ lead/etc)

  • Construction ( Stone / glass / cement / concrete / sand / slag )

  • Powder metallurgy; / Abrasive materials;

  • catalysts production and recycling;

  • Chemical.

  • Others ( Comestic / makeup / clinker / pearl / linestone / others )
