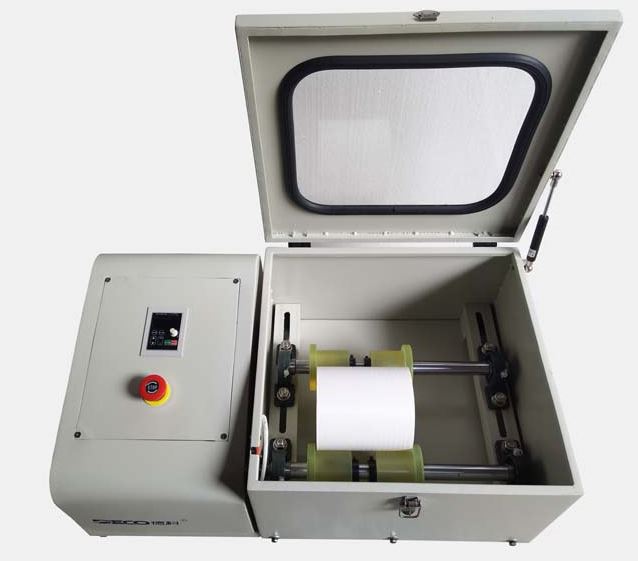

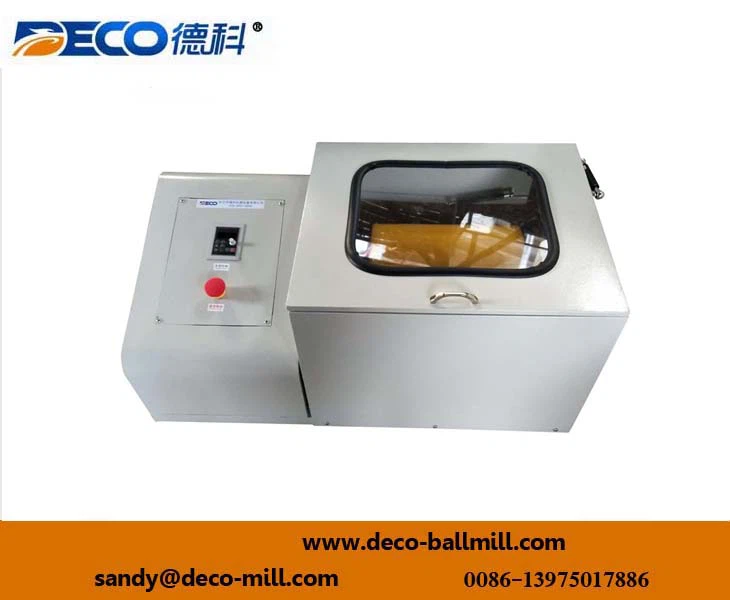

5L Lab Grinding Mill

5L lab grinding mill Introduction: The DECO Lab ball mill is a kind of sample pulverizing machine, which can grind coarse particles into micro powders. It can mill the materials from 10mm maximum into 15um minimum powder. This machine can deal 0.3L to 10L material per time depends on the model...

Products Specifications:

5L lab grinding mill
Introduction:
The DECO Lab ball mill is a kind of sample pulverizing machine, which can grind coarse particles into micro powders. It can mill the materials from 10mm maximum into 15um minimum powder. This machine can deal 0.3L to 10L material per time depends on the model choose


Technical Data

Item NO.

DECO-JM-1*5L

Structure

Single Tier

Grinding tools

Horizontal grinding jar

NO. of grinding jar

1

Grinding jar volume

0.5L/ 1L/ 1.5L/ 2L/ 2.5L/ 3L/ 4L/ 5L

Max feeding size(depend on material)

20mm

Final fineness(depend on material)

15μm

Rotation speed of grinding jar

480rpm

Electrical details

0.25KW, 220VAC, 50Hz

Max roller space

260mm

Overall dimension

W735*D425*H320mm

Gross weight

48 KG

Remark:

(1) Single tank, feeding grain size: ≤10MM diameter, output grain size: 15μm minimum diameter.
 (2) Loading rate of ball mill can not exceed 70% of the effective volume of grinding cylinder.


The Input & Output Size of material

For fragile materials:
Input size: 10mm maximum
Output size: 15um minimum
Time needed: About 3hours per time milling

For hard materials:
Input size: 3mm maximum
Output size: 15um minimum
Time needed: Depends on the material hardness.


Working Principle


While the lab ball mill starts working, the axises of machine starts to rotate and makes the jars on it rotating together rapidly. During jars motion, the material & milling balls inside jars ascend to certain height and then drop along the parabola whereabout by gravity. Eventually, materials inside it will be milled into powder by the repeated crushing with the balls & jar wall.

Varies materials of milling jars:


With over 5years experience of manufacturing and sale, the company has been supplying its laboratory ball mills to leading universities, research institutions, manufacturing units and various labs where small level of grinding and mixing jobs are required. Our continuous innovation in the field of manufacturing lab ball mills guarantees our customers satisfaction in mind. If you are looking to buy a lab scale ball mill, consider DECO, reasonable priced and high quality grinding machines that are supplied all over the world.
