0.4L Lab Ball Mill

0.4L planetary lab grinding mill All-directional planetary ball mill with four ball milling tanks are arranged on the planetary disk. When the disk turns (revolution), ball milling tank in its orbit for rotation, disk and the ball milling tank in planetary motion at the same time, but also in a...

Products Specifications:

0.4L Planetary Lab Ball Mill


Working principle:

All-directional planetary lab ball mill with four ball milling tanks are arranged on the planetary disk. When the disk turns (revolution), ball milling tank in its orbit for rotation, disk and the ball milling tank in planetary motion at the same time, but also in a three-dimensional space range do 360 degree tipping bucket type flip, can be setting on any directional fixed point operation. The grinding materials more uniform fine, and can solve the problem of tank bottom and sticky part of the material.


Features:

Item No.

DECO-PBM-AD-0.4L

Compatible Grinding Jars

(50ml~100ml) * 4

Max Feeding Capacity

2/3 capacity of the grinding jar

Operation Mode

2 or 4 grinding jars working simultaneously

Feeding Granularity*

Soil materials < 10mm, others materials < 3mm

Discharging Granularity

down to 0.1μm (depend on materials )

Sample Type

hard, medium-hard, soft, fibrous, brittle, moist

Rotational Speed of Grinding Jar

900rpm

Rolling Over Speed of Planetary Disk

12rpm

Drive Mode

gear drive and belt drive

Speed Control

stepless speed regulation

Electrical Details

110V/220VAC, 50/60Hz, single phase, 0.25KW

Max Continuous Grinding Time

72hours (full-load)

Gross Weight

140KG

Dimension (L*W*H)

950*500*680mm

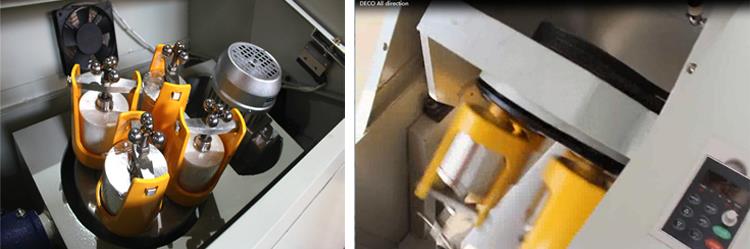

All-Direction (Full-direction) planetary lab grinding mill:
Some materials like black carbon is easy to sink and get together in the bottom of the jar, we recommend the All direction planetary ball mill for grinding. The All-direction type can solve the problem successfully.


360 planetary ball mill.jpg

Mill Jars and Mill Balls:
Our factory can provide 304 stainless steel, alumina,zirconia, nylon, PTFE, tungsten carbide, agate tanks, etc. ball milling tank volume: 0.1L, 0.25L, 0.5L, 1L, 1.5L, 2L, 2.5L, 3L and 4L and 5L, 10L, 15L, 20L, 25L

And we can also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.

How to choose a right model:
Please offer us more information so that we can recommend suitable planetary ball mill for you!


 (1) Material

  • What's your raw material?

  • What's your sample granularity?

  • What's your requirements on the discharging granularity?


(2) Capacity
How many of the samples do you need to grind each time?
Welcome to send us your sample material and we will perform a sample preparation -non-binding and free-of-charge. Or if anything interested in, please don't hesitate to contact me!
