16L Planetary Ball Mill Grinder

16L planetary ball mill grinder Introduction: DECO-PBM-AD series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high...

Products Specifications:

16L planetary ball mill grinder


Introduction:
DECO-PBM-AD series planetary ball mill has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground samples can be as small as 0.1 micron meter.

It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.


Technical Features of Full-directional Planetary Ball Mill Grinder

Drive Mode

Gear drive and Belt drive

Operate Mode

Two or four grinding jars working simultaneously

Maximum Loading Capacity

2/3 of the total volume of milling jars

Feeding Size

Soil material≤10mm,other materials≤3mm

Output Granularity

Most materials 2-5μm, some materials like clay, graphene <1μm

Rotational Speed Ratio

1:2

Max. Continuous Operating Time

48 Hours

Materials of Jar

stainless steel. agate, nylon, corundum, zirconia, etc

Materials of Jarstainless steel.agate,nylon,corundum,zirconia,etc



         Type

Power
    (KW)

Voltage

Revolution Speed
     (rpm)

Rotation Speed
     (rpm)

Alternating Run
     Time of Forward &
     Reversal Rotation
     (min)

DECO-PBM-AD-0.4L

0.25

220V/110V-50/60Hz

35-550

70-1100

1-999

DECO-PBM-AD-2L

0.75

35-400

70-800

DECO-PBM-AD-4L

0.75

DECO-PBM-AD-6L

0.75

DECO-PBM-AD-8L

1.5

220V-50/60Hz

35-290

70-580

DECO-PBM-AD-12L

1.5

DECO-PBM-AD-20L

4

380V-50/60Hz

25-215

50-430

DECO-PBM-AD-40L

5.5


20-195

40-390

DECO-PBM-AD-60L

7.5


20-166

40-250

DECO-PBM-AD-100L

11


20-160

40-240



Reference of the 360 degree rotary full-directional planetary ball mill

All-Direction (Full-direction) planetary ball mill grinder:
Depending on the fineness required, the grinding can be performed dry, in suspension or in inert gas. In addition to comminution, you can also use the mills for mixing and homogenising of emulsions and pastes or for mechanical alloying and activation in material research.



with 4pcs nylon jars or PU jars

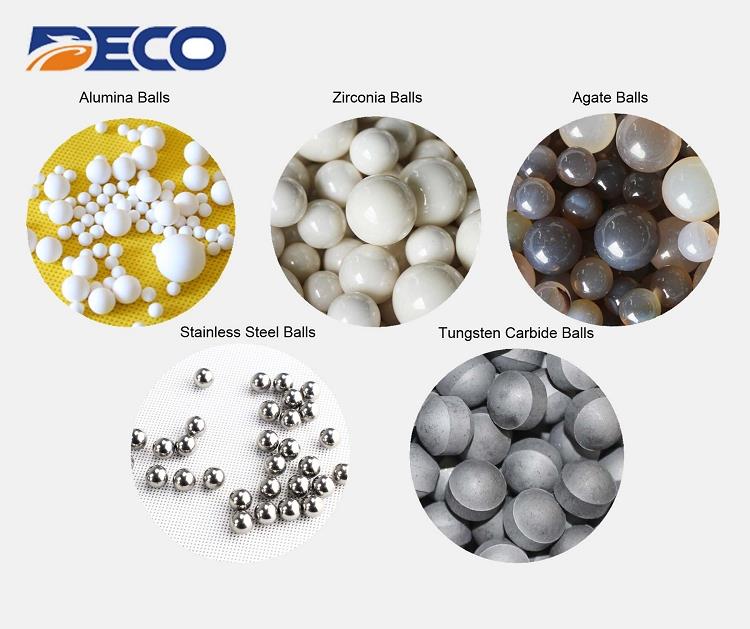

Mill jars and Mill balls:




Company introduction:

With rich experiences of hard work in the industry, all kinds of lab ball mills we designed and produced have many advantages such as impact machine model, flexible and simple operation, grinding with dry and wet materials, which can meet requirements of dispersed grinding of all laboratories and further greatly benefit enlarging experimental results to production machine. The lab ball mills are the best choice for your labs grinding and research of new materials.

With sustained business conception of "Customer Is Superior, Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC etc.

We promise that we would make great efforts to provide high quality machines and best services for all customers in the coming years.
