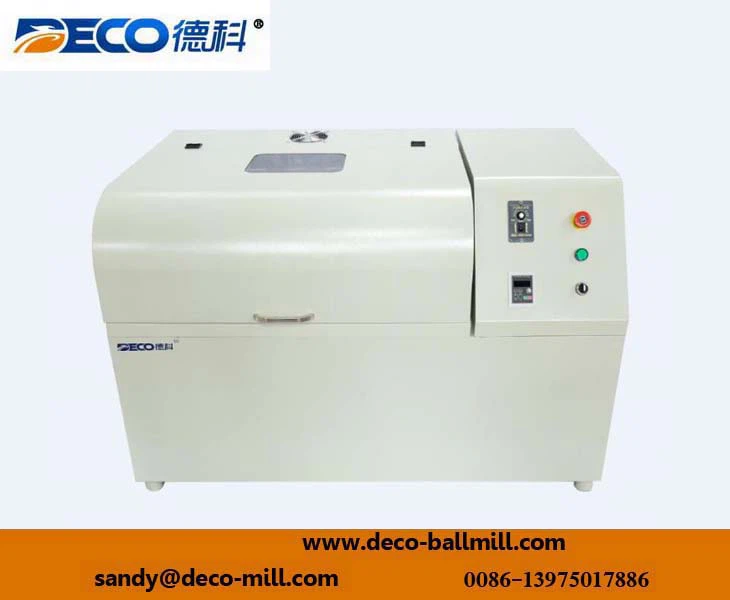

2L Planetary Ball Milling Machine

360°planetary movement without dead corner, the ground powder is much finer and more even
Solves the problems of materials sinking and sticking to the jars.

Products Specifications:

2L planetary ball milling machine


Planetary Ball Milling machine is designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples under the vacuum condition or filled with inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.


The planetary ball milling machine is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time).


Features:

  • Stable revolving speed of the gear transmission ensure the consistency and repeatability of the experience.

  • Planetary ball mill adopts planetary movement and has high speed, large energy, high efficiency, small particle.

  • Four different size, different material samples can be produced at the same time.

  • The speed can be adjusted as per the experience result. The frequency converter has undervoltage and over-current protection function to protect the motor.

  • The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, timing and untiming operation.

  • Our planetary ball mill is functional which has low barycenter, stable performance, compact structure, easy operation, reliable safety, low noise, low wastage.

  • Safety switch is installed to avoid machine start when the safety cover opened

Mill Jars and Media Balls:
Our factory can provide stainless steel pot, alumina pot, nylon pot, PU pot, tungsten pot, etc. And we can also provide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.

ball milling jar volume: 0.1L, 0.25L, 0.5L, 1L, 1.5L, 2L, 2.5L, 3L and 4L and 5L, 10L, 15L, 20L, 25L



All-Direction (Full-direction) planetary ball mill:
Some materials like black carbon is easy to sink and get together in the bottom of the jar, we recommend the All direction planetary ball mill for grinding. The All-direction type can solve the problem successfully.

photobank (1).pngphotobank.png


Packing:
