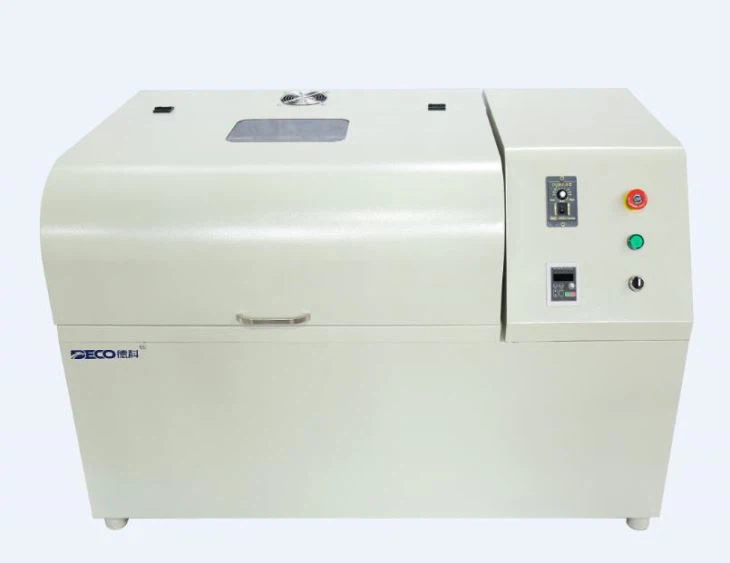

6L Planetary Mill Machine

6L planetary mill machine Introduction: All-directional planetary ball mill is developed on basis of vertical planetary ball mill with an increase of turning function of planetary disc. The planetary disc and pots are turning at 360℃ tipping bucket type in a tridimensional space while they are...

Products Specifications:

6L planetary mill machine
Introduction:
All-directional planetary ball mill is developed on basis of vertical planetary ball mill with an increase of turning function of planetary disc. The planetary disc and pots are turning at 360℃ tipping bucket type in a tridimensional space while they are making planetary movement. Multidirectional and multidimensional movement increase degree of disorder movement of balls and materials. All materials in the ball are grinded without any dead space and grinded powder is much more uniform and fine. This model solves problems of sink bottom and clay pot completely.


Technical Data

Working Principle

impact and friction force

Item No.

DECO-PBM-AD-6L

Compatible Grinding jar

(1000ml~1500ml)*4

Max Feeding Capacity

2/3 capacity of the grinding jar

Operation Mode

2 or 4 grinding jars working simultaneously

Max Feeding Granularity

soil materials <= 10mm, other materials <= 3mm

Discharging Granularity

down to 0.1 micron

Sample Type

hard, medium-hard, soft, fibrous, brittle, moist – dry/wet

Jar Rotational Speed

800rpm

Rotational Speed Ratio

1 : 2

Drive Mode

gear drive and belt drive

Speed Control

stepless speed regulation

Electrical Details

100-120/200-240 V, 50/60 Hz, 750 Watt

Continuous Grinding Time

Max 72hours (full-load)

Gross Weight

195kg

Dimension

L1040mm*W730mm*H720mm


Frequency conversion control panel




 with 4pcs stainless steel ball mill jars (vacuum jars are also available)


with 4pcs nylon jars or PU jars

Application of planetary ball mill:
Depending on the fineness required, the grinding can be performed dry, in suspension or in inert gas. In addition to comminution, you can also use the mills for mixing and homogenising of emulsions and pastes or for mechanical alloying and activation in material research.


Packing:


With rich experiences of hard work in the industry, all kinds of lab ball mills we designed and produced have many advantages such as impact machine model, flexible and simple operation, grinding with dry and wet materials, which can meet requirements of dispersed grinding of all laboratories and further greatly benefit enlarging experimental results to production machine. The lab ball mills are the best choice for your labs grinding and research of new materials.

With sustained business conception of "Customer Is Superior, Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC etc.

We promise that we would make great efforts to provide high quality machines and best services for all customers in the coming years.
