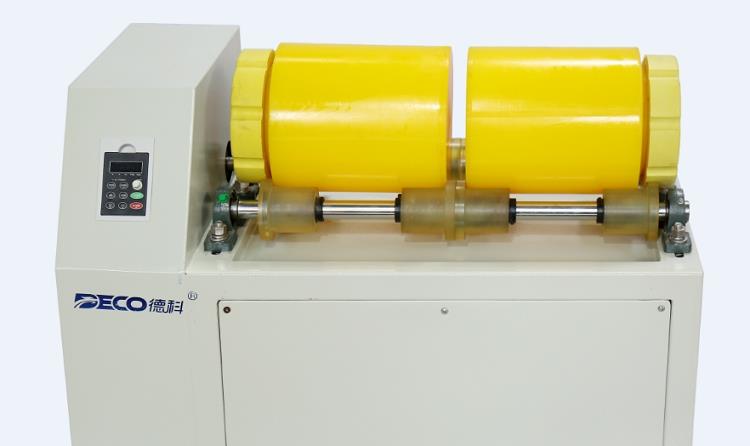

Lab Powder Grinding Ball Mill
Lab powder grinding ball mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. It is a preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Description
Lab Powder Grinding Ball Mill
Lab powder grinding ball mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. It is a preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Features
● Single or multi-tier design, two or four jars per tier
● No cross-contamination between samples
● Easily adjustable rollers and brackets to accommodate different jars of various diameter
● Rotation speed can be adjusted
● Position adjustment for roller for different diameters of jars.
Specifications
| Item No. | DECO-PM-2*5L |
Grinding Mode | Wet/Dry |
Structure | Single Tiers |
Frame | Welded steel with PU coating |
Grinding Tools | Horizontal Grinding Jar |
No. of Working Station | 2 |
Grinding Jar Volumes | 0.5L-5L or as requested |
Max Feed Size (depend on material) | 10mm |
Final Fineness (depend on material) | 300~1000mesh |
Electrical Details | 220VAC, 50Hz ,0.75KW |
Rotation Speed | 40-410rpm±10 |
| Machine Size | 760*420*640mm |
4 Work Station | Model | DECO-PM-4*5L | DECO-PM-4*10L | DECO-PM-4*15L | |
Power (KW) | 0.75 | 1.5 | 1.5 | ||
Frequency Transformer | 0.75KW/220V | 1.5KW/220V | 1.5KW/220V | ||
Rotation Speed(r/min) | 50-410 | 40-340 | 40-340 | ||
Roll shalf length(mm) | 609 | 762 | |||
Maximum Laod(KG) | 35 | 80 | |||
Size(mm) | 881*660*680 | 940*800*680 | |||
8 Work Station | Model | DECO-PM-8*5L | DECO-PM-8*10L | DECO-PM-8*15L | |
Power (KW) | 1.5 | 2.2 | 2.2 | ||
Frequency Transformer | 1.5KW/220V | 2.2KW/380V | 2.2KW/380V | ||
Rotation Speed(r/min) | 50-410 | 40-390 | 40-390 | ||
Roll shalf length(mm) | 609 | 700 | 762 | ||
Maximum Laod(KG) | 35 | 60 | 80 | ||
Size(mm) | 881*660*950 | 900*736*950 | 940*800*950 | ||
Products Details
For different capacity: The rotation axis can be adjusted freely to apply for different size jars. 1-5L,10L jars for chosen.
For different rotation speed: With frequency converter equipped. Rotation speed adjustable as experiment required. Axis rotation speed can reach 410 rpm maximum.
For different material milling: Different material jars for choice. Easy to exchange.
Packing
Standard Exported Polywood case
