Planetary Ball Mill

what is planetary ball mill ？

 A planetary ball mill is a high-energy grinding machine used to reduce materials to extremely fine powders or create homogenous mixtures through mechanical alloying. It is widely used in laboratories and industries for advanced material synthesis, nanotechnology, and sample preparation.

A planetary ball mill is a high-performance tool for ultrafine grinding, mixing, and material synthesis. Its unique dual rotation mechanism delivers unparalleled energy intensity, making it indispensable in nanotechnology, advanced materials research, and precision industrial processes. For coarse grinding or large-scale production, conventional ball mills remain more practical.

Why you need a planetary ball mill ？

A planetary ball mill is essential if you need to:

Grind materials to nano-level fineness (0.1–10 μm) for advanced research or high-performance products.

Mix materials perfectly (even hard-to-blend metals or ceramics) with unmatched uniformity.

Work with sensitive materials in vacuum or inert gas environments (prevents oxidation).

Save time — achieve in hours what traditional mills take days to do.

Example uses: Batteries, nanomaterials, pharmaceuticals, or grinding rocks into powder 100x finer than sand!

Types of planetary ball mill

There are three types of ball mills in common use: vertical, horizontal and all direction ball mill machine.

Vertical planetary ball mill for sample normal grinding.

The horizontal ball mill is placed horizontally between the ball mill jar and the ground, which can effectively prevent the dead angle of the sample in the ball mill jar.

The all direction ball mill is a product optimized on the basis of vertical and horizontal mills，Its planetary disk can be turned 360 degrees, making the sample more uniform, and greatly improving the grinding efficiency.

Technical Specifications

(1) Single direction without timing

Samples need long or non-stop milling.

(2) Single direction with timing

Samples need to be milled in one direction for a designated amount of time before automatic shutdown.

(3) Bi-direction with timing

For example: samples need to run clockwise for 1.5 hours, then counter-clockwise for another 1.5 hours and so on, for 15 total hours, before the machine shuts down itself.

(4) Single direction with paused interval and timing

For example: samples need to run for 0.5 hour, then pause for 1 hour, then run for another 0.5 hour in the same direction and pause for another 1 hour, for 10 cycles before auto shutdown.

(5) Bi-direction with paused interval and timing

For example: samples need to run clockwise for 0.8 hour, pause for 0.5 hour, then run counter-clockwise for 0.8 hour, for 20 cycles, before auto shutdown.

Sizes of planetary ball mill

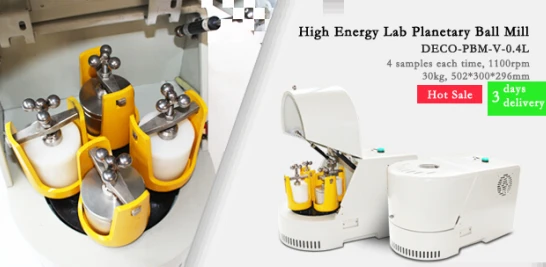

Mini planetary ball mill  DECO-PBM-V-0.4L   Desktop small ball mill,the total grinding volume is about 150 ml

Lightweight planetary ball mill    DECO-PBM-V-2L-B   For ground use, the ball mill jar can be selected from 50-500ml,Suitable for lightweight ball milling jars such as nylon, PTFE, agate, etc.the max total grinding volume is about 700 ml

Heavy duty planetary ball mill   DECO-PBM-V-2L-A   For ground use, the ball mill jar also  can be selected from 50-500ml,Suitable for heavyweight ball milling jars such as 304stainless stell, alumina, zirconia,tungsten etc.the max total grinding volume is about 700 ml

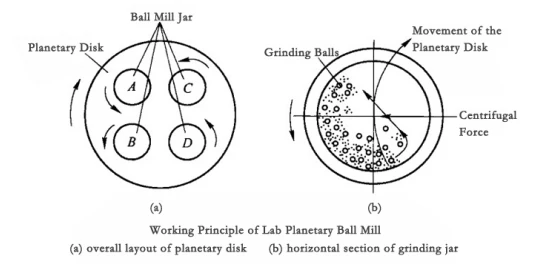

working principle

Planetary ball mill has four ball grinding jar holders installed on one planetary disk. When the planetary disk rotates, the jar axis makes planetary movements and the balls in the jars grinds and mixes samples in high speed movement. The instrument can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron.

What is the application of planetary ball mill?

Planetary ball mill can be performed dry, in suspension or in inert gas. In addition to comminution, you can also use the mills for mixing and homogenizing of emulsions and pastes or for mechanical alloying and activation in material research. The instrument has small volume, complete function, high efficiency and low noise. It is the ideal facility to acquire research samples for research institutes, universities as well as enterprise laboratories (can acquire four samples in one experiment). If mated with vacuum ball milling tanks, it can grind samples in vacuum status. The products are extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.

Why choose deco company？

7 *24 hours online EMAIL service!
1. We are Alibaba Assessed Gold Supplier.
2. We are a factory manufacturing laboratory planetary ball mills, the best production capability, the best quality control and the best services.
3. 100% QC inspection before shipment.
4. CE, ISO9001 listed ball mills, competitive prices.
5. We provide just-in-time delivery with its streamlined supply chain to ensure you quick delivery.
6. We provide long-life and high reliability ball mills with excellent quality and better performance, resulting in increased cost savings.
7. We believe that if customers are satisfied then it proves our worth well. Customers are always given quick support.

FAQS

What are the different types of ball mills?

1，By Design and Motion Mechanism：Tumbling Ball Mill (Horizontal Ball Mill)，Planetary Ball Mill，Vibratory Ball Mill，Stirred Ball Mill (Attritor Mill)

2，By Operating Mode：Dry Ball Mill，Wet Ball Mill

3，By Scale and Purpose：Laboratory Ball Mill，Industrial Ball Mill

Ball mills vary from simple horizontal designs to high-tech planetary systems. Choose based on material type, target particle size, and operational scale!

What is the difference between a planetary mill and a Conventional Ball Mill?

 Planetary Ball Mill:

Required: Nano/micron-scale particles, lab-scale R&D, or mechanical alloying.

Examples: Battery materials, graphene, catalysts.

Conventional Ball Mill:

Required: Bulk processing of coarse materials, cost-sensitive projects.

Examples: Cement clinker grinding, mineral ore processing.

Planetary ball mills excel in precision and high-energy grinding for advanced materials but are costlier and smaller-scale. Conventional ball mills are workhorses for industrial bulk grinding but lack fine-tuning capability. Choose based on particle size needs, scale, and budget!

What is the difference between a planetary mill and a ball mill?

You need nanoscale particles or advanced material synthesis.

Lab-scale R&D or small-batch production.

Working with reactive/oxygen-sensitive materials (using inert gas).

Choose a Ball Mill If:

Processing bulk materials (e.g., minerals, cement).

Budget constraints prioritize cost over precision.

Simple, continuous operation is required.

Planetary ball mills excel in precision and high-energy grinding for cutting-edge applications, while conventional ball mills are economical workhorses for industrial-scale coarse grinding. Your choice depends on particle size goals, scale, and budget!

How to Choose Between a Planetary Ball Mill and a Roller

Nanoscale grinding, mechanical alloying, or precision lab research is required.

Typical users: Materials scientists, battery R&D teams, nanotechnology labs.

Choose a Rotary Ball Mill When:

Coarse ore crushing, large-scale material processing, or budget constraints apply.

Typical users: Mining companies, cement plants, chemical factories.

What is the difference between a ball mill and a bead mill?
