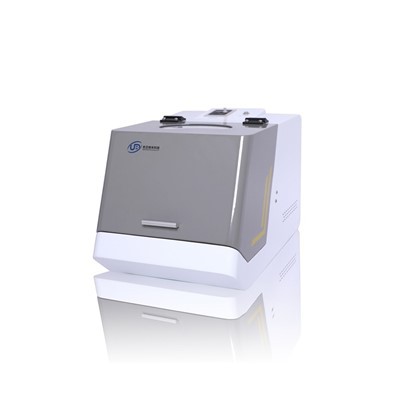

Vertical Planetary Ball Mill 0.4L
In the quest for finer particles and more efficient material processing, planetary ball mills have evolved into several distinct designs. Among these, the Vertical Planetary Ball Mill presents a unique and space-saving solution. This article provides a focused look at vertical mills and compares them with the classic Horizontal and the highly specialized Omni-Directional configurations.
Description
The Vertical Planetary Ball Mill
Design Principle: As the name suggests, this mill features a vertically oriented sun wheel. The grinding jars are mounted vertically around this central axis. They perform the same dual rotation-revolving around the central axis and rotating on their own axis-but within a vertical plane.
Key Advantages:
Compact Footprint: Its vertical design requires significantly less bench space than a horizontal mill with a comparable number of jars.
Gravity-Assisted Grinding: The vertical orientation can lead to a more consistent media charge within the jar during operation, potentially improving grinding efficiency for certain materials.
Easier Jar Handling: Loading and unloading of jars can be more ergonomic, as they are often accessed from the top or front without needing to lift over a horizontal plate.
Comparative Analysis of Three Planetary Mill Types
To choose the right technology, it's essential to understand the core differences between the three primary configurations.
| Aspect | Vertical Planetary Mill | Horizontal Planetary Mill (Traditional) | ALL-Directional Planetary Mill |
|---|---|---|---|
| Orientation & Motion | Jars rotate in a vertical plane. Motion is planetary (revolution + rotation). | Jars rotate in a horizontal plane. Motion is planetary (revolution + rotation). | The entire milling chamber (containing jars) rotates in three dimensions, creating chaotic ball movement. |
| Core Advantages | 1. Space-saving design. 2. Consistent media charge. 3. Ergonomic jar access. |
1. Proven, robust design. 2. Excellent stability and heat dissipation. 3. Widest range of available models, jar types, and accessories. |
1. Highest energy intensity due to 3D chaotic motion. 2. Most uniform grinding with no "dead zones." 3. Extremely fast processing times. |
| Key Limitations | 1. Potential for heat buildup. 2. May have lower max load capacity. 3. Less common, fewer options. |
1. Requires more bench space. 2. Media can segregate under gravity, creating slight inhomogeneity. |
1. Extremely high cost. 2. Very low capacity (typically < 100 ml total). 3. Complex mechanics, higher maintenance. |
| Primary Use Case | Ideal for labs with severe space constraints needing efficient batch processing. | The industry standard. Ideal for versatile R&D, mechanical alloying, and routine sample prep where reliability is key. | Specialized research requiring the ultimate in nano-dispersion, amorphization, or processing of extremely hard or temperature-sensitive materials. |
| Energy Transfer | High (planetary). Efficient and direct. | High (planetary). Efficient and well-understood. | Extremely High . Most efficient energy transfer to powder. |
| Sample Homogeneity | Very Good. | Very Good. | Exceptional. Unmatched uniformity. |
How to Choose? A Decision Guide
Your choice depends entirely on your application priorities:
Choose a Horizontal Planetary Mill if: You need a reliable, versatile workhorse for most R&D tasks. It offers the best balance of performance, capacity, accessory availability, and proven track record. It's the default choice for good reason.
Choose a Vertical Planetary Mill if: Bench space is your primary constraint, but you still require true planetary high-energy performance. It is an excellent space-efficient alternative to the horizontal design for many applications.
Choose an Omni-Directional Mill if: Your research pushes the boundaries of nano-technology or advanced material synthesis and budget/throughput are secondary concerns. It is a specialized tool for achieving results unattainable by standard planetary mills.
Conclusion:
While the traditional Horizontal Planetary Ball Mill remains the cornerstone of high-energy milling labs, the Vertical configuration offers a compelling, space-optimized alternative. For the most demanding frontier science, the All-Directional Mill provides unparalleled performance at a premium. Understanding the distinct advantages of each design-from the space-saving vertical, to the reliable horizontal, to the ultra-high-all directional systems-empowers you to select the perfect instrument to drive your material innovation forward.
Pls contact: deco_mill@126.com May Liu
