Planetary Milling Machine
Working Principle & Core Advantages Principle : The mill features grinding jars that rotate around a central axis ("sun wheel") while simultaneously rotating on their own axis in the opposite direction. This dual planetary motion generates strong Coriolis and centrifugal forces ,...
Description

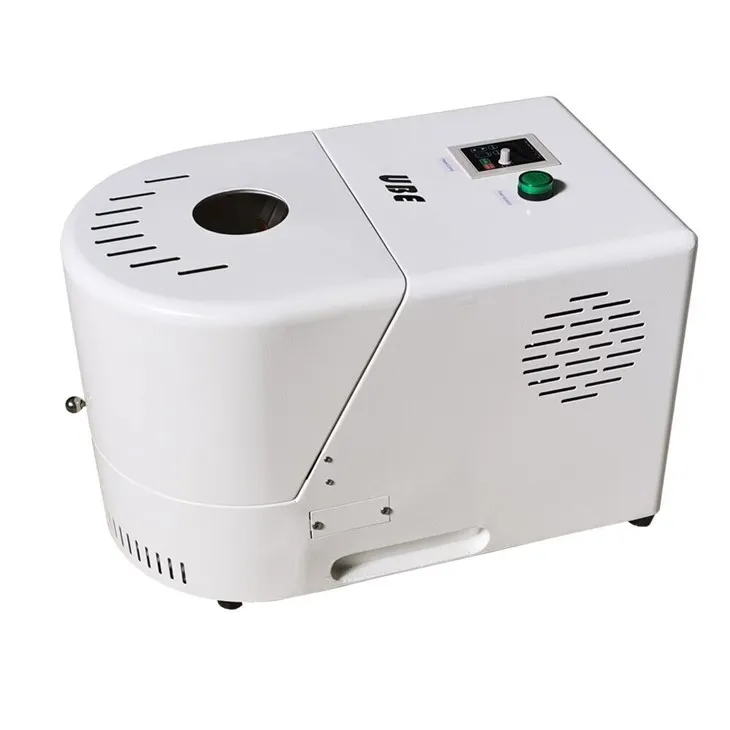

0.4L Benchtop Planetary Ball Mill
Working Principle & Core Advantages
Principle: The mill features grinding jars that rotate around a central axis ("sun wheel") while simultaneously rotating on their own axis in the opposite direction. This dual planetary motion generates strong Coriolis and centrifugal forces, leading to high-energy impact and shear between the grinding balls and the sample material.
Key Advantage: This mechanism provides significantly higher energy density than conventional ball mills, enabling nanoscale grinding, mechanical alloying, and perfect homogenization.
Technical Specifications (Typical Range)
| Parameter | Typical Specification Range |
|---|---|
| Grinding Stations | 2 or 4 jars |
| Jar Volume | 50 ml to 100 ml per jar |
| Jar Material | Stainless Steel, Agate, Alumina, Zirconia, Nylon, PTFE, Tungsten Carbide |
| Max. Feed Size | < 10 mm |
| Final Fineness | < 1 µm (can reach nano-scale) |
| Speed Control | 100 - 1100 rpm (planetary disc speed), digitally adjustable |
| Speed Ratio | Fixed (e.g., 1:-2) or variable |
| Control Mode | Digital timer, programmable (cycle, direction, pause), speed profile |
| Power Supply | 110V/220V, 50/60 Hz |
| Applications | Size Reduction, Mechanical Alloying, Mixing & Homogenizing, Colloidal Milling, Cell Disruption |
Simple Operation Procedure (3-Step Workflow)
Operating the 0.4L mill is straightforward:
Step 1: Preparation & Loading
Select the appropriate jar and grinding balls (material and size).
Fill the jar with your sample and balls. Do not exceed 1/3 of the jar's total volume (including balls and material).
For wet grinding, add an appropriate grinding aid (e.g., ethanol, water) to just cover the sample.
Securely fasten the lid and clamp the jar(s) symmetrically onto the sun disk.
Step 2: Setting Parameters & Running
Set the grinding time on the digital timer.
Set the desired rotation speed. Start at a medium speed (~800 rpm) for new materials.
Close the safety cover and start the machine.
The mill will run automatically and stop when the time elapses.
Step 3: Unloading & Cleaning
Allow the jar to cool if it's warm.
Carefully open the lid and separate the grinding balls from the powder using a sieve.
Clean the jar and balls immediately with a suitable solvent (e.g., ethanol in an ultrasonic cleaner) to prevent cross-contamination.
Any further problems pls feel free to contact us: deco_mill@126.com
