Lab Small Jar Mill Roller
Lab small jar mill roller Introduction: Lab small jar mill roller is the best grinding and mixing machine for lab and small quantity production. With good appearance, tight structure, easy operation, high efficiency, uniform granularity, it is surely the optimized choice. It can applied to...
Description
Lab small jar mill roller
Introduction:
Lab small jar mill roller is the best grinding and mixing machine for lab and small quantity production. With good appearance, tight structure, easy operation, high efficiency, uniform granularity, it is surely the optimized choice.
It can applied to electronic material, magnetic material, biological medicine, ceramics and glaze slip, non-metal ores, new materials and other industries.
Principle:
Grinding media and materials will rotate wth barrel to a certain height when roll mill working, then materials and grinding media will drop along with parabola, material will be ground under the friction and cutting of grinding media.
Specifications:
| Item NO.: | DECO-PM-1*5L-C |
| Structure | Single tier |
| NO. of grinding jar | 1 |
| Materials of milling jars | 304 stainless steel, PA,PU, PTFE, Alumina,etc |
| Materials of grinding media balls | 304 stainless steel, Zirconia, Alumina,etc |
| Milling jars volume | 0.5L/ 1L/ 2L/ 2.5L/ 3L/ 4L/ 5L |
| Rotation speed | 50~480rpm |
| Electrical detail | 0.25KW, AC220V/ 50Hz (AC110V/ 60Hz) |
| Max feeding size | <10mm |
| Output size (depend on materials) | 300~400mesh |

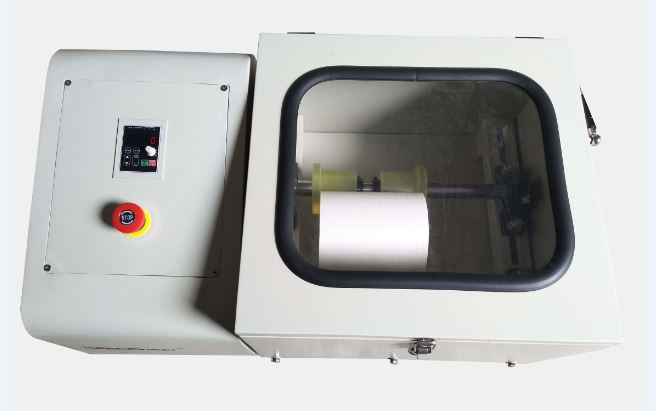

Lab jar mill roller with 1 working station:
Lab jar mill roller with 2 working stations:
Lab jar mill roller with 4 working stations:
Lab jar mill roller with 8 working stations:
Applications:
