Lab Roll Ball Mill
The small lab roll ball mill is mainly used in the lab and small batch production.
It is used for grinding and mixing.
Easy and convenient to operate.
Description
Lab Roll Ball Mill
Features
Frequency conversion control speed,program control.
Adjusting the roller wheel base to fit different size of jars.
The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar deformation.
Feeding granularity less than 3mm,soil <=10mm
Main application
Widely used in electron,ceramic,daubing,glass flour,luminophore material,nonmetallic ore,explosive,medicine etc.
Used in the processing of electronic material,magnetic material,equipment battery,biological cultivation,food packaging,battery material
Lab roll ball mill mainly used in the laboratory and small batch production.Because of the flexible and convenient operation, also used for production of some small enterprises.
Optional configure

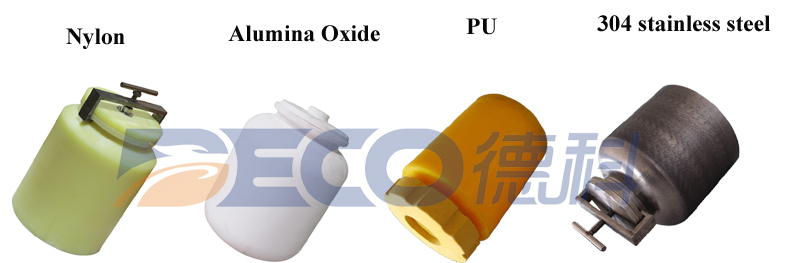

Material of grinding jar selection:Nylon,corundum/alumina oxide,stainless steel,polyurethane etc such as special material could be customized
Material of grinding balls selection:stainless steel balls,alumina oxide balls,zirconium oxide balls, etc
Item No. | DECO-PM-2*5L |
Structure | Single Tier |
Grinding Tools | Horizontal Grinding Jar |
No. of Grinding Jar | 2 |
Grinding Jar Volumes | 0.5L/1L/1.5L/2L/2.5L/3L/4L/5L/10L/or as requested |
Max Feed Size (depend on material) | 20mm |
Final Fineness (depend on material) | Mini 15um |
Rotational Speed | 410rpm |
Electrical Details | 220VAC, 0.75KW, 50Hz |
Max Roller Spacing | 17cm |
Roller Length | 63cm |
Overall Dimension | W810*D420*H660mm |
Dimension (Control Room) | W160*D420*H660mm |
Net Weight | 70KG |
