Lab Ball Mill Aluminum Grinding
The Lab Ball Mill Aluminum Grinding Machine pulverize and mix soft, medium-hard, extremely hard, brittle and fibrous materials. They are mainly used for making micro and nano powders from particle samples. Other applications include pulverizing, mixing, homogenizing
Description
Lab Ball Mill Aluminum Grinding
Lab Ball Mill Aluminum Grinding Machine is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production.
In order to helping scientific researchers working comfortably, DECO provides low noise machine to keep laboratory in a related quiet situation. DECO lab provides free sample grinding. Research sample can be grinded to colloidal fineness≥0.1μm. Both dry and wet grinding. Widely using in geology, mine, metallurgy, electronics, building material, ceramic, chemical, light industry, medicine, beauty, environmental protection, etc.
DECO-PBM-V-2L/4L/6L-A Lab Planetary Ball Mill
750W, AC220V, 50Hz, AC110V,60Hz
Feeding size: <3mm
Discharge granularity: 2~10micron, minimum to 0.1micron
Rotation speed of ball mill jar: 0~800rpm
Revolution speed of planetary disk: 0~400rpm
Grinding test of aluminum powder:
Material: Aluminum powder
Feeding size: 2-3mm
Grinding tools: Alumina jars+ Zirconia balls
Grinding methods: wet grinding,adopt alcohol as solvent
Rotation speed: 400rpm
Working time: 6 hours
Output size: average 4μm

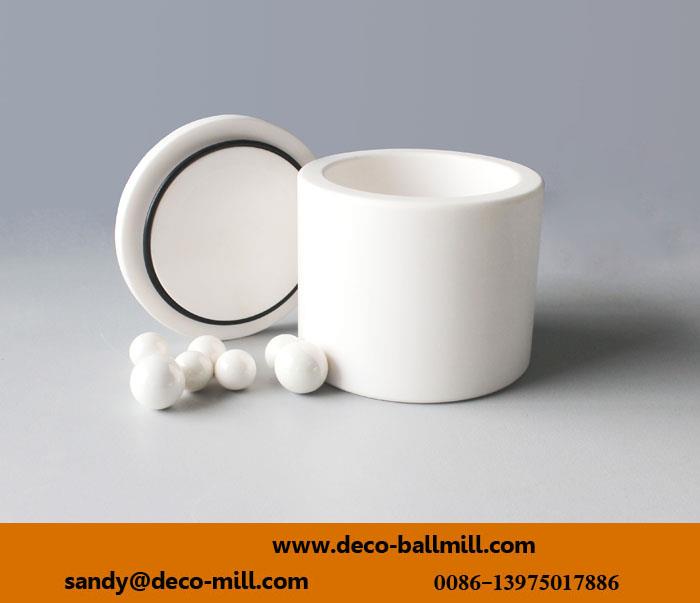

Grinding Jars and Grinding Media Balls for Choice:
Application area:
Widely using in geology, mine, metallurgy, electronics, building material, ceramic, chemical, light industry, medicine, beauty, environmental protection, etc.
Packing:
Working Principle | impact and friction force |
Item No. | DECO-PBM-V-2L/4L/6L-A |
Compatible Grinding Jars | (250ml~1500ml) * 4 |
Max Feeding Capacity | 2/3 capacity of the grinding jar |
Operation Mode | 2 or 4 grinding jars working simultaneously |
Feeding Granularity* | Soil materials < 10mm, others materials < 3mm |
Discharging Granularity | Most materials 2~10μm, for some material down to 0.1μm |
Sample Type | hard, medium-hard, soft, fibrous, brittle, moist |
Rotational Speed of Grinding Jar | 850rpm |
Rotational Speed Ratio (planetary disk/jar) | 1 : 2 (≤4L) and 1 : 1.5 (≥12L) |
Drive Mode | gear drive and belt drive |
Speed Control | stepless speed regulation |
Electrical Details | 220VAC, 50Hz, single phase, 0.75KW |
Max Continuous Grinding Time | 72hours (full-load) |
Weight | 120KG |
Dimension (L*W*H) | 830*480*550mm |
Noise Level | < 70dB |
