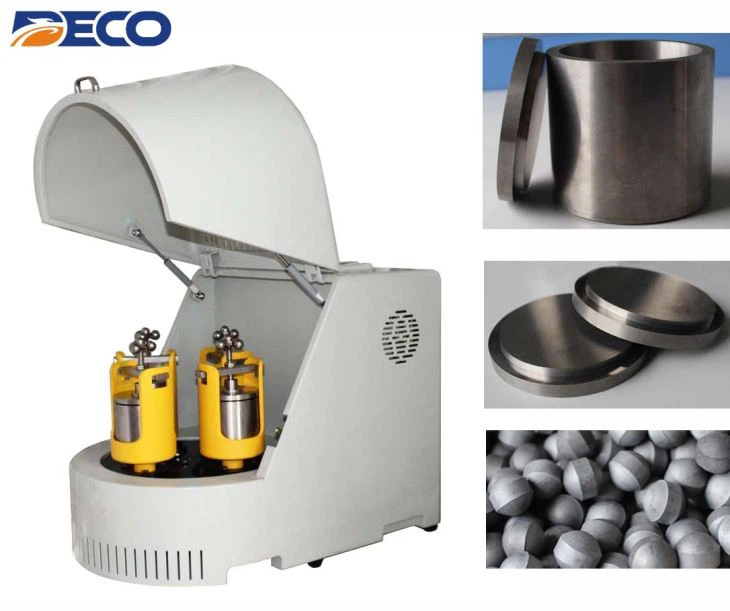

Mini Laboratory Planetary Micro Mill

Name: Mini Laboratory Planetary Micro Mill
Brand: Deco
SKU: 57176206

mini-laboratory-planetary-micro-mill Features: 1. Gear-drive guarantees high uniformity and repeatability of experiments; 2. Fast rotational speed, high efficiency and fine granularity; 3. Stepless speed regulation; ideal rotary speed selection according to experimental results; 4. Timed...

Send Inquiry Chat Now

Description

mini-laboratory-planetary-micro-mill

Features:

1. Gear-drive guarantees high uniformity and repeatability of experiments;

2. Fast rotational speed, high efficiency and fine granularity;

3. Stepless speed regulation; ideal rotary speed selection according to experimental results;

4. Timed powering-off, positive and negative revolving if required;

5. It features low center of gravity, good rigidity, compact structure, safety and reliable operation, low noise, no pollution, and small wear.

Specification:

Item NO.	DECO-PBM-V-0.4L lab planetary micro mill
Grinding tank volume	20ml/ 50ml/ 100ml
Grinding tank material	304stainless steel/ PA nylon/PU/PTFE teflon/ Agate/ Tungsten carbide/ Alumina / Zirconia
Grinding media balls	304stainless steel/ Agate/ Tungsten carbide/ Alumina / Zirconia, etc
Max charge per tank	materials and media balls do not exceed 2/3 volume of the tank
Feed particle size	Soil material less than 10mm, others less than 3mm
Discharge granularity	Min 0.1 micron (depend on materials, like alumina and silicon powder to 4micron, clay to 0.5micron)
Rotation speed	Revolution of planetary disk: 35-550rpm Rotation of grinding tank: 70-1100rpm
Operating voltage	AC220V, 50Hz/ AC110V, 60Hz
Power	250W
Max continuous working time	72 hours
Program control	forward rotation, reverse rotation and repeated operation and alternate operation of forward rotation, pause, reverse rotation, forward rotation (1-999min), suitable for cooling. Or need to run intermittently.
