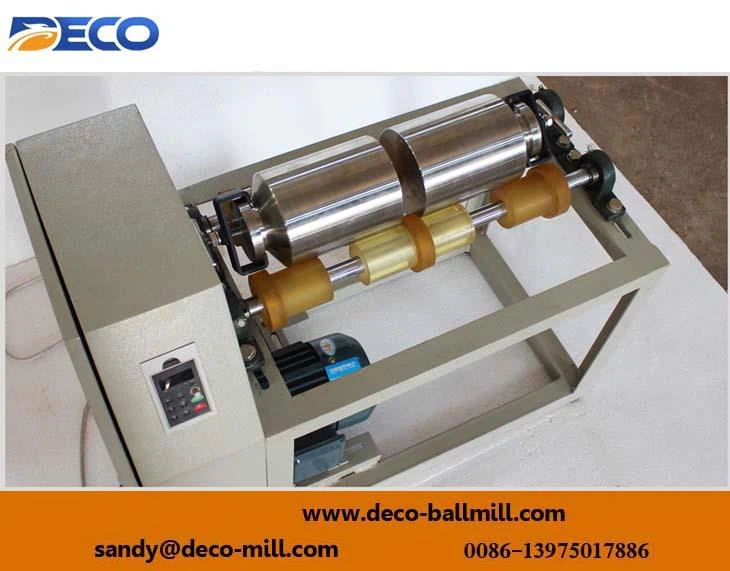

Jar Ball Mill For Grinding Powder
Jar roller ball mill
For grinding/mixing powder
With different tanks: PA,PU,PTFE,Stainless steel,Alumina etc
Description
Jar ball mill for grinding powder
Working Principle:
When the jar ball mill working, the grinding media and the materials in the ball mill jars raise to a certain height. Due to the gravity, they fall down from the jar wall.
The materials are crushed under the impact action of the grinding media, also by the friction and shearing action of the grinding media' s rolling and sliding.
Item No. | DECO-PM-2*5L |
Structure | Single Tier |
Grinding Tools | Horizontal Grinding Jar |
No. of Grinding Jar | 2 |
Grinding Jar Volumes | 0.5L/1L/1.5L/2L/2.5L/3L/4L/5L or as requested |
Jar Materials | 304 Stainless Steel/PA/PU/PTFE/Alumina |
Max Feed Size (depend on material) | 10mm |
Final Fineness (depend on material) | Most materials 300~400 mesh, for some materials down to 15micron. |
Rotational Speed of Grinding Jar | 20~410±10 rpm |
Electrical Details | 220VAC, 0.75KW, 50Hz |
Overall Dimension | W860*D420*H690mm |
Dimension (Control Room) | W160*D420*H660mm |
Net Weight | 70KG |
Jar ball mill, OEM&ODM order accepted.
Different jars for optional:
Beside the lab jar ball mill, DECO also produce the accessories, ball mill jar: 304 stainless steel, Nylon, PU, PTFE, Alumina Ceramic, etc
And the grinding media balls: 304 stainless steel, Alumina, Zirconia, Agate
