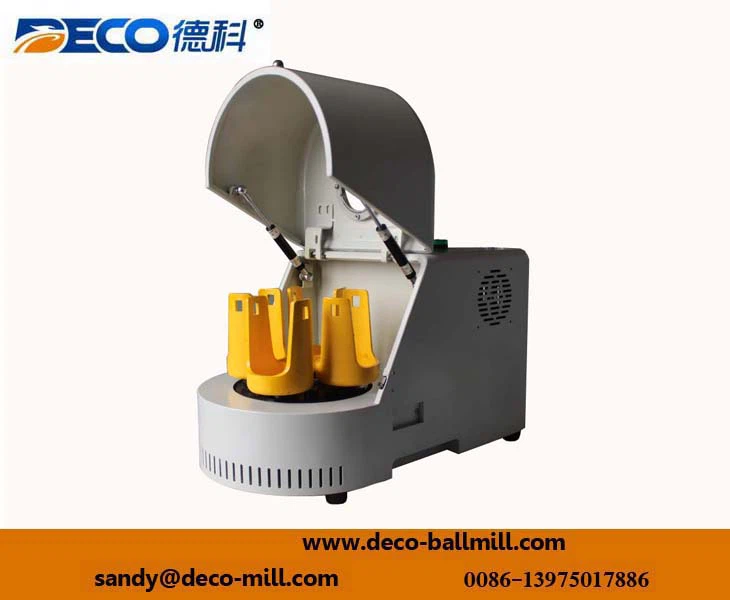

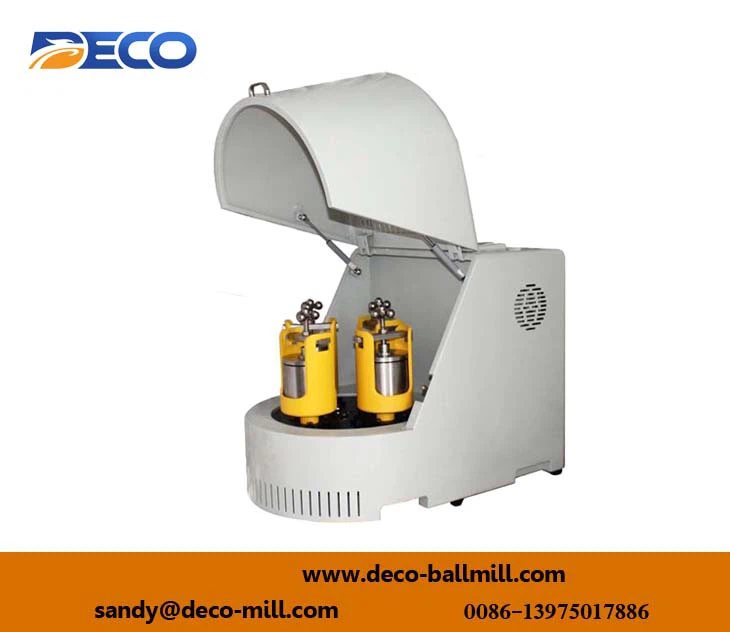

0.4L Planetary Ball Mill Laboratory

0.4L planetary ball mill laboratory Planetary ball mill working principle: The planetary ball mill has four ball mill jars installed on planetary disk. When the planetary disk rotates, the jar axis makes the planetary rotation in opposite directions and the balls in the jars grind and mix...

Send Inquiry Chat Now

Description

0.4L planetary ball mill laboratory

Planetary ball mill working principle:

The planetary ball mill has four ball mill jars installed on planetary disk. When the planetary disk rotates, the jar axis makes the planetary rotation in opposite directions and the balls in the jars grind and mix samples in high-speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. (Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to customer's feedbacks, minimum granularity can be as small as 0.1 um).

photobank

Specifications:

Working Voltage	220V AC/ 110V AC
Max. Power Consumption	250W
Speed control	Variable by changing frequency
Rotary Rate	1. Planetary disk revolution: 35-550 rpm 2. Grinding jar rotation: 70-1100 rpm
Digital display	1. Digital display the speed in RPM/Hz 2. Timer controls major platen's running time from 0 - 9999 hours
Ball mill jars	304 stainless jars, PA jars, PTFE jars, Agate jars, Zirconium oxide jars, alumina jars, cement carbide jars, etc 20ml, 50ml, 100ml for choice
Compliance	CE Certified
Warranty	One year limited warranty with lifetime support
Production Dimensions	502x300x298mm
Net Weight	30KG
Application Notes	1. SS304 mixing jar is suitable for grinding various metal materials 2. Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in symmetrical position. Otherwise, unbalance rotation, especially one jar, may damage the machine.
