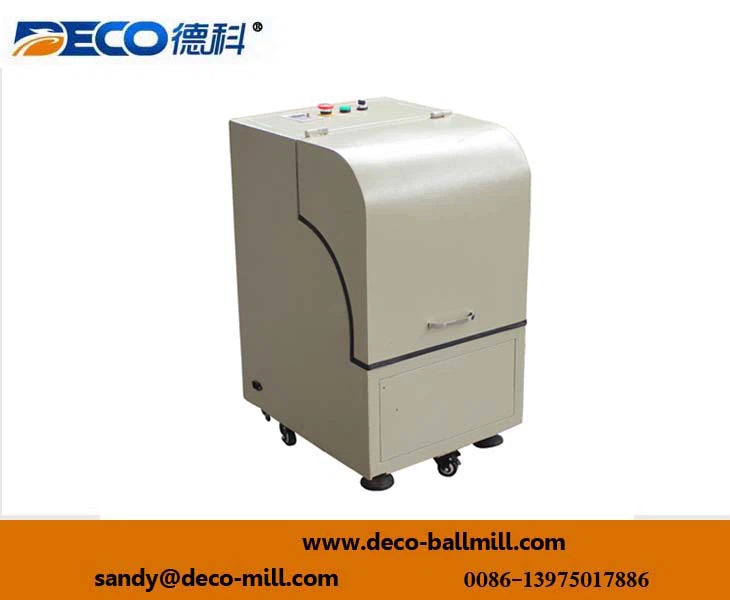

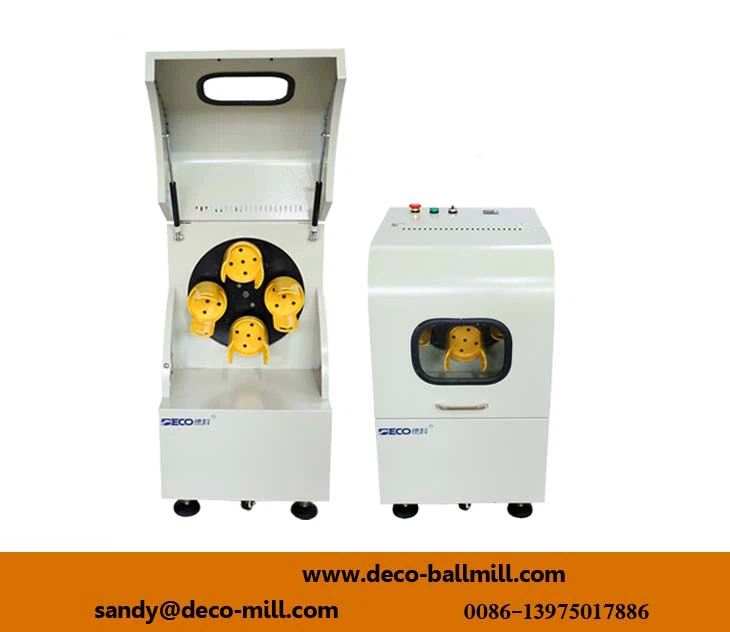

Planetary Ball Grinder

Planetary ball grinder is a rapid experimental ultrafine grinding machine, which can be widely used in industries of ceramics, glass cement, metal, chemical and pharmaceutical, for small batch production or research laboratories.

How does a ball mill machine work?

A planetary ball mill works on the principle of planetary motion, where the grinding jars mounted on a rotating platform revolve around their own axis while also making a planetary motion around the central axis of the mill. Here is a detailed description of how a planetary ball mill works:

1,Structure: A planetary ball mill consists of a central sun gear, which is fixed at the center of the mill, and multiple grinding jars arranged symmetrically around the sun gear. The grinding jars are mounted on a rotating platform called the sun wheel.

2,Grinding Jars and Grinding Balls: The grinding jars are cylindrical containers that hold the material to be ground along with suitable grinding balls or beads. The number and size of the grinding jars can vary depending on the specific mill design. The grinding balls are typically made of materials such as steel, ceramics, or tungsten carbide and are placed inside the jars.

3,Planetary Motion: When the planetary ball mill is turned on, the sun wheel rotates on its own axis in the opposite direction to the rotation of the grinding jars. This rotation of the sun wheel imparts a centrifugal force to the grinding balls, causing them to move along a circular path inside the grinding jars.

4,Grinding Process: As the grinding jars rotate around the central axis of the mill and simultaneously revolve around their own axis, the grinding balls inside the jars impact and grind the material. The high-energy impacts generated by the grinding balls result in the reduction of particle size and the mixing of different components, if required.

5,Milling Parameters: The milling process in a planetary ball mill can be controlled by adjusting various parameters. These include the rotation speed of the sun wheel and the grinding jars, the ratio of grinding balls to the material being processed, and the duration of milling. These parameters can be optimized to achieve the desired grinding results.

6,Cooling Mechanism: Due to the high-energy impacts and friction generated during milling, heat can be generated in the system. To dissipate this heat, some planetary ball mills are equipped with cooling mechanisms such as water cooling jackets or integrated cooling systems.

Overall, the planetary ball mill offers efficient grinding, mixing, and homogenization of materials due to the combination of high-energy impacts and planetary motion. It is widely used in scientific research, material synthesis, and industrial applications.

Features:

Simple and convenient operation with famous brand DELIXI frequency converter.

Single reverse running, positive and reverse alternation running, indirect running program and user-defined running.

Emergency stop button and power led light will be convenient for man-machine exchange and flexible operation.
