Planetary Ball Mill For Glass Powder

Mainly for lab grinding use.
Ideal for glass powder, mineral,soil materials,etc
Output size: Alumina, silicone powder down to 4 micron
soil materials down to 0.5 micron

Send Inquiry Chat Now

Description

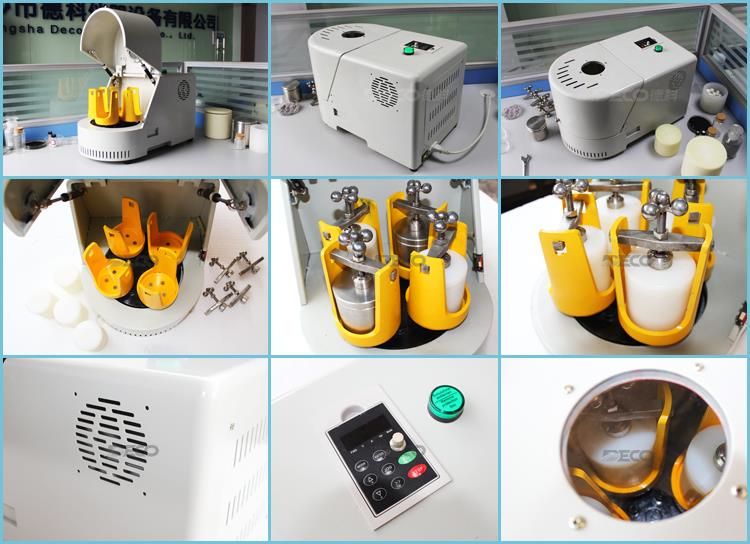

Planetary ball mill for glass powder

Features:

1.Gear-drive guarantees high uniformity and repeatability of experiments;
2.Fast rotational speed, high efficiency and fine granularity;
3.Four samples with different sizes and materials in one experiment available;
4.Stepless speed regulation; ideal rotary speed selection according to experimental results;
5.Timed powering-off, positive and negative revolving if required

Grinding samples:

Application:

Geology and Mineralogy
Ceramics
Chemistry
Biology
Pharmaceuticals
Metallurgy
Material Technology
Sample Preparation For Analysis

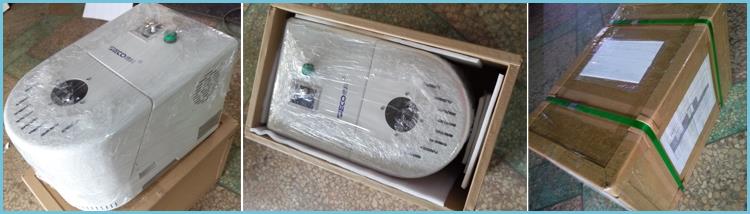

Shipping and packing:

1 Standard exported case

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way,

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

Working Voltage	220 - 240V AC (single phase), 50 Hz or 100-120V AC, 60Hz
Max. Power Consumption	250W
Speed control	Variable by changing frequency of AC motor
Rotation speed	Planetary disk revolution: 30-550 rpm Grinding jar rotation: 60-1100 rpm
Digital display	Digital display the speed in rpm Timer controls major platen's running time from 1 to 999 min Timer control jar rotation time from clockwise to anticlockwise direction: 1-99 minutes
Grinding Jars	4 working station(2 or 4 grinding jars working simultaneously ) Quick clamps are included for easy tighten Various jars are available as optional (304stainless steel, agate, alumina, zirconia, PA, PTFE, tungsten carbide, etc)
Warranty	One year limited warranty with lifetime support Consumable parts, jars and grinding balls, are not covered by the warranty
Compliance	CE Certified
Production Dimensions	502mm(L) x 300mm(W) x 298mm(H)
Packing Dimensions	610mm(L) x 370mm(W) x 370mm(H)
Net Weight	30kg
Application Notes	SS304 grinding jar is suitable for grinding various metal materials For milling the oxide material, please choose alumina/zirconia jars and media Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, otherwise unbalance rotation, especially one jar, may damage the machine
