Planetary Mini Ball Mill Machine

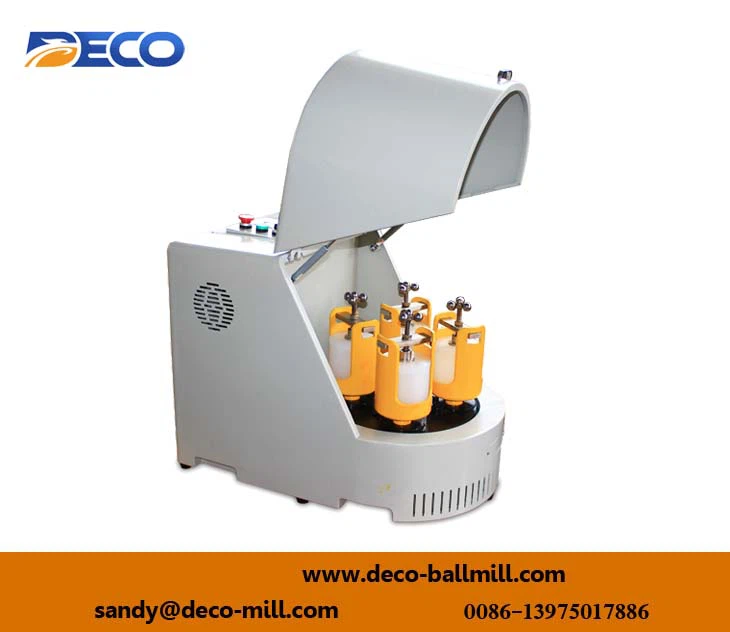

Planetary mini ball mill machine

Introduction:

Planetary mini ball mill machine is mixed, fine grinding, sample preparation, dispersion of nano material, new product development and small batch production of high technology materials necessary device.

Working principle:

The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls. To achieve this, the ball mill jar, containing the material to be ground and grinding balls, rotates around its own axis on a planet disk while rotating rapidly in the opposite direction. At a certain speed, the centrifugal force causes the ground sample material and grinding balls to separate from the inner wall of the grinding jar. The grinding balls then cross the jar at high speed and further grind the sample material by impact against the opposite jar wall. In addition, impact between the balls themselves on the sample material adds to the size reduction process.

Specification:

Application of planetary ball mill:

• Agricultural: Plant material, soil, wood fiber

• Biological : Bones, paper towels

• Ceramic and glass :Ceramic oxide and clay minerals, glass, Carbon fiber, pigments, coatings

• Building materials : Bentonite, cement clinker, polymer, gypsum, sand, stone

• Environmental research : The mixture, electronic chips, sludge, waste

• Mineral and metallurgical and metal electrons: Alloys, coal, iron ore, metal oxide, quartz, magnetic materials, etc.

Example of milling task:

Packing:
