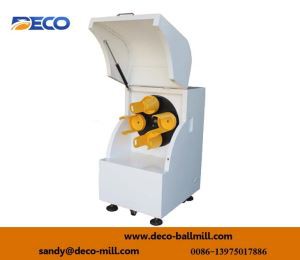

Super Mini Lab Planetary Ball Mill Machine

Working Principle

Planetary ball mill has four ball grinding jar holders installed on one planetary disk. When the planetary disk rotates, the jar axis makes planetary movements and the balls in the jars grinds and mixes samples in high speed movement. The instrument can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron.

Features

· Elegant design, easy to operate

· Ideal for wet or dry grinding application

· Automatic and programmable control with LED display

· multiple grinding modes to choose

· High Uniformity and excellent repeatability

· Fast rotational speed, high efficiency and fine granularity

· Four samples with different sizes and materials in one experiment

· Programmable interval and pause times

· Stepless speed regulation, reversing function

· Large range of materials available for grinding tools

· Gear-drive offers an effective solution to problems caused by belt driving

· Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and small wear

· Cooling of the grinding chamber with a built-in fan for long grinding times

Technical Data

What are the samples suitable for planetary ball mills？

Planetary ball mills are versatile equipment and can be used with various types of samples. The suitability of a sample for planetary ball mill grinding depends on its physical and chemical properties. Here are some common sample types suitable for planetary ball mills:

Hard and Brittle Materials: Planetary ball mills are particularly effective for grinding hard and brittle materials. Examples include ceramics, minerals, ores, glasses, and advanced materials like composites and semiconductors.

Powders and Nanomaterials: Planetary ball mills are well-suited for grinding powders and producing nanomaterials. They can be used for the synthesis and production of nanoparticles, nanopowders, and nanocomposites. Examples include metal powders, alloy powders, carbon nanotubes, graphene, and various types of nanoparticles.

Biological Samples: Planetary ball mills can also be used for grinding biological samples, such as tissues, cells, bacteria, and other biomaterials. Care must be taken to ensure that the grinding process does not cause excessive heat or damage to the biological samples.

Pharmaceuticals: Planetary ball mills are utilized in the pharmaceutical industry for grinding and blending pharmaceutical compounds. They can be used for sample preparation, drug formulation, and development of new drug delivery systems.

Pigments and Dyes: Planetary ball mills are suitable for grinding pigments and dyes. They can help in achieving fine particle size and uniform dispersion of colorants in various applications, such as paints, inks, coatings, and textile dyes.

Chemicals and Catalysts: Planetary ball mills are effective for grinding and mixing chemicals and catalysts. They can be used for preparing precursors, conducting reactions, and synthesizing new compounds.

Food and Food Additives: Planetary ball mills can be employed for grinding food and food additives. They can assist in reducing particle size, blending ingredients, and improving the texture and properties of food products.

Geological and Environmental Samples: Planetary ball mills are useful for grinding geological and environmental samples. They can be used for sample preparation in geology, soil science, environmental analysis, and mineralogy.

It is important to note that the suitability of a specific sample for planetary ball mill grinding may depend on factors such as the sample size, desired particle size, sample composition, and the specific milling conditions. It is recommended to consult the manufacturer's guidelines and conduct preliminary experiments to determine the most suitable parameters for a particular sample.
