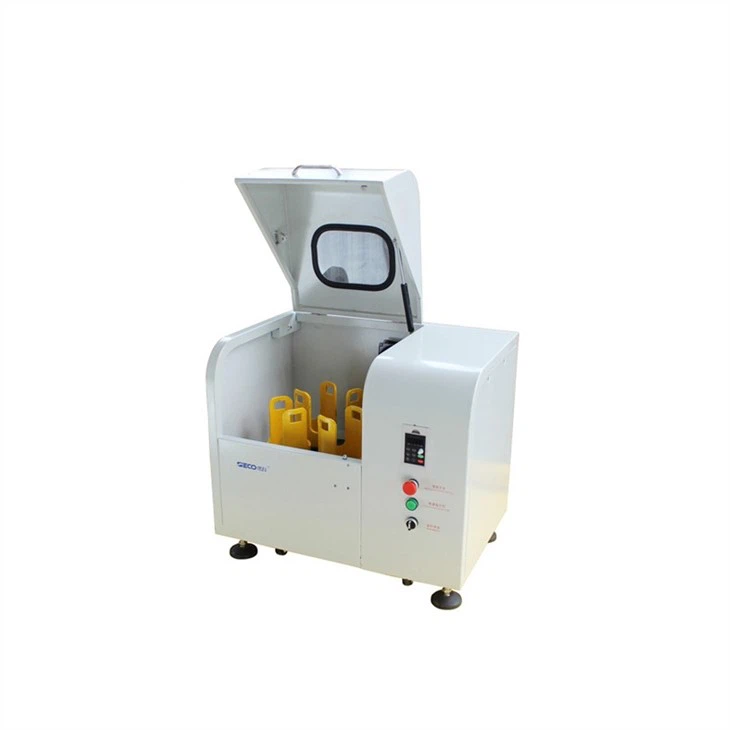

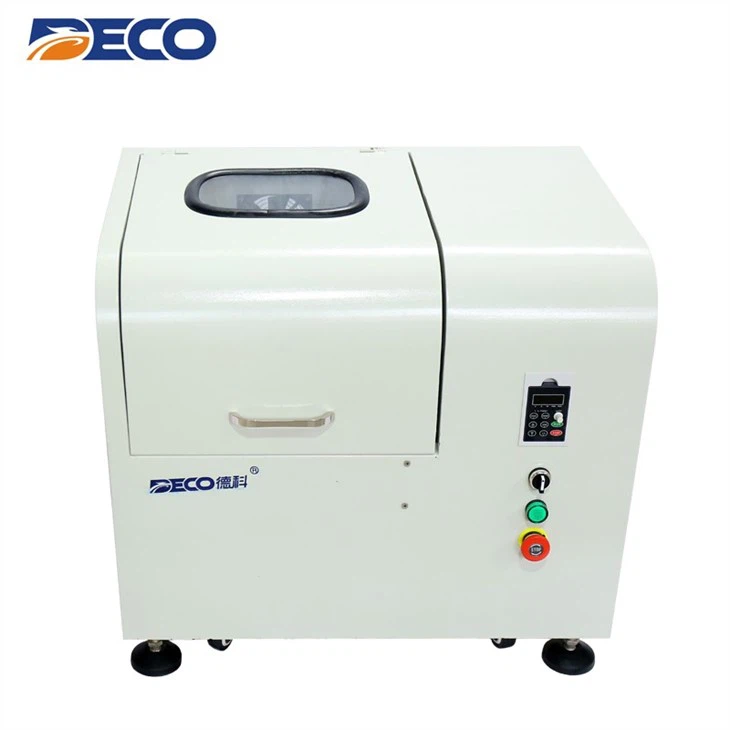

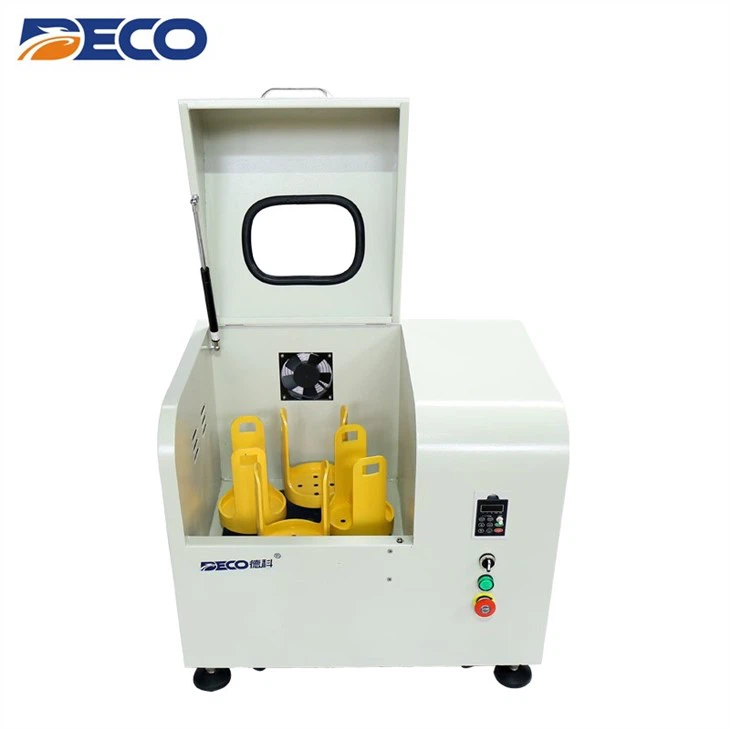

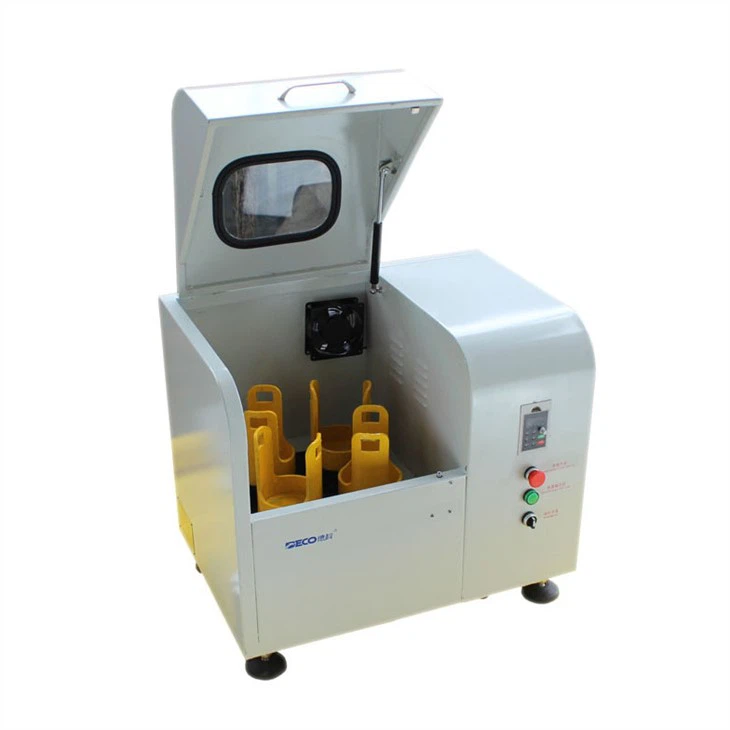

Vertical Planetary Ball Mill 2L With 4 Stations

Vertical Planetary Ball Mill 2L With 4 Stations

Working principle of planetary ball mill：

The planetary ball mill guides the sample to do planetary motion through the rotation of the ball mill jar itself and the revolution of the whole planetary disk,in this way, the grinding balls in the ball mill jar will form friction force, shear force and centrifugal force through planetary motion,the samples are crushed in this form.

Vertical planetary ball mills offer several advantages compared to other types of ball mills. Here are some of the key advantages:

Efficient Grinding: Vertical planetary ball mills have a more efficient grinding mechanism compared to traditional ball mills. The vertical arrangement of the jars and the central axis rotation result in a more uniform and efficient grinding action. This leads to faster grinding times and finer particle size reduction.

Simultaneous Grinding: Vertical planetary ball mills can accommodate multiple jars, allowing for simultaneous grinding of different materials or multiple batches. This feature increases productivity and efficiency in sample preparation or industrial applications.

Compact Design: Vertical planetary ball mills have a relatively compact design, making them suitable for use in laboratories or settings with limited space. The vertical arrangement of the jars takes up less floor space compared to other types of mills, making them easier to integrate into existing setups.

Versatility: Vertical planetary ball mills are versatile and can be used for various applications. They are suitable for grinding and mixing a wide range of materials, including hard and brittle materials, soft and ductile materials, as well as temperature-sensitive samples. This versatility makes them valuable in research, development, and production environments.

Controllable Parameters: Vertical planetary ball mills offer precise control over several milling parameters. These include rotation speed, milling time, and the ratio of grinding balls to the material being processed. This control allows for tailored milling conditions, enabling optimization of the grinding process and achieving the desired particle size and material properties.

Scale-up Potential: Vertical planetary ball mills can be scaled up to handle larger sample volumes or production quantities. By increasing the size of the jars and the mill, it is possible to achieve higher throughput without sacrificing the benefits of the vertical arrangement and efficient grinding mechanism.

Overall, vertical planetary ball mills provide efficient and versatile grinding solutions with enhanced control over the milling process. These advantages make them suitable for a wide range of applications, including research, quality control, material synthesis, and industrial production.

Characteristic：

1,Strong, fast grinding, high precision discharging effect;

2,Grinding fine, pollution-free, suitable for grinding a wide range of materials;

3,Low noise, low vibration, more comfortable to use;

4,The control of grinding data such as rotation speed and time can ensure the repeatability and consistency of sample grinding;

5,Equipped with a variety of different materials of ball mill jar grinding at the same time, with the diversity of grinding samples;

6,Support dry grinding, wet grinding, vacuum / pressurized grinding, inert gas grinding, low / high temperature grinding;

7,Grinding room and control room are equipped with high ventilation and heat dissipation system;

8,The control system has strong controllability, convenient parameter setting, various functions, intuitive digital display, simple operation, one-piece operation and safe use;

9,Power off protection function, automatic storage of grinding data;

Main technical parameters：

Maximum feed size: < 15mm

Ball mill jar volume: 50ml/100ml/250ml/500ml

Number of grinding platforms: 4pcs

Speed ratio: 1:2

Speed of ball mill jar: 800r / min

Diameter of planetary disk: 360mm

Planetary disk thickness: 10 mm

Ball mill jar material: stainless steel / nylon / polyurethane / polytetrafluoroethylene / polypropylene / high molecular polyethylene / agate / alumina / zirconia and so on

Grinding balls material: stainless steel / alumina / zirconia / agate / cemented carbide

Power: 0.75kw

Voltage: 110-120VAC/220-230 VAC

Frequency: 50/60 Hz

Net weight: 120kg

Protection grade: IP53

Standard: CE/ISO9001
