Lab Planetary Ball Grinding Mill
The lab planetary ball grinding mills are widely used for lab sample grinding in material research.
Description

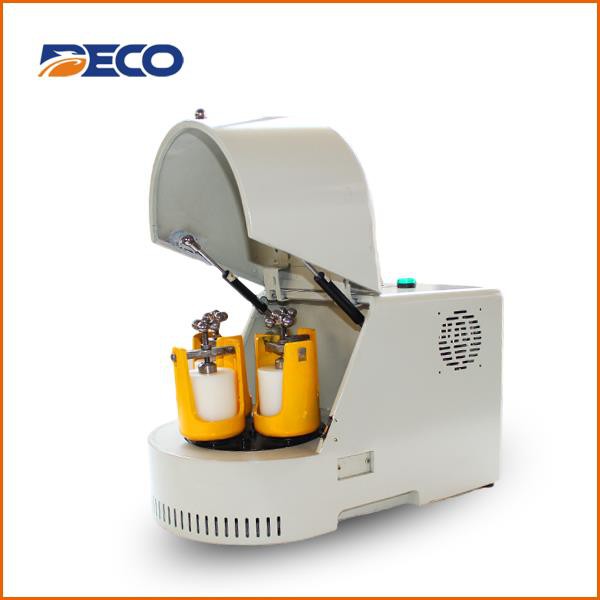

Lab planetary ball grinding mill
Specification:
| Item No. | DECO-PBM-V-0.4L |
| Compatible Non Vacuum Grinding Jars | (25ml/50ml/100ml)*4 |
| Compatibal Vacuum Grinding Jars | 50ml*4,50ml grinding jars only for vacuum |
| Operation Mode | 2 or 4 grinding jars working simultaneously |
| Discharging granularity | Soil materials < 10mm, others materials < 3mm |
Sample Type | hard, medium-hard, soft, fibrous, brittle, moist |
Rotational Speed of Grinding Jar | 1100rpm |
Rotational Speed Ratio | 1:2 |
Drive Mode | gear drive and belt drive |
Speed Control | stepless speed regulation |
Electrical Details | 110VAC, 50/60Hz, 0.25KW |
Max Continuous Grinding Time | 72hours (full-load) |
Weight (Net /Gross) | 30KG /40KG |
Dimension (L*W*H) | 502*300*298mm |
To connect with liquid nitrogen:
To connect with air-cold equipment:
Grinding test:
CE certificate:
