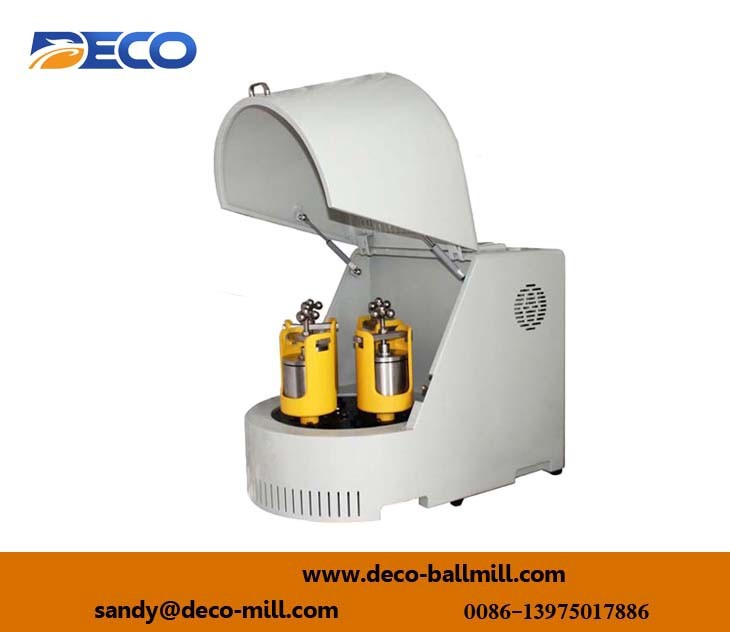

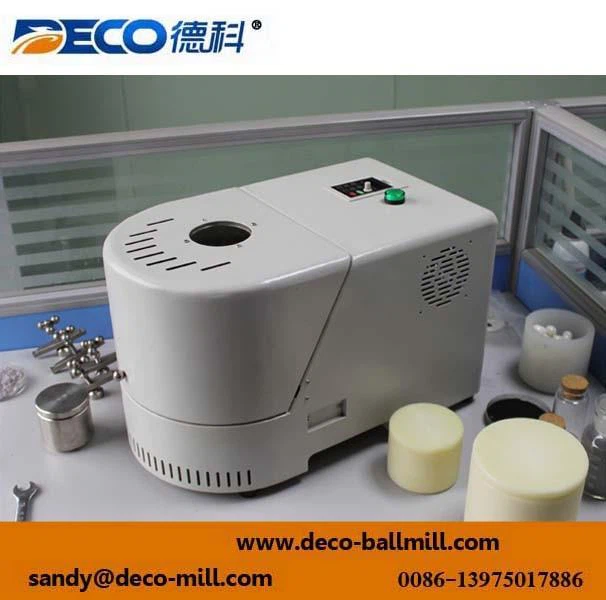

Micro powder grinding planetary ball mill

According to the processing requirement to set the rotation speed and alternate time of forward and reversal rotation and set the total grinding time.

The device is equipped with a safety switch, which can avoid the equipment running after opening the safety cover, and avoid a safety accident

Operational Principle:

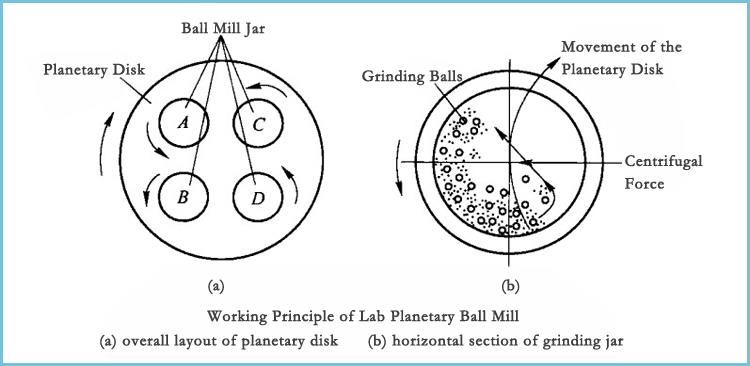

The planetary ball mill has four ball mill jars on a planetary disk, and when the planet disk circumvolve (revolution), it will drive ball mill jars to circumvolve (rotation) surrounding its rotor axis to form epicyclical motion. The drive ratio of revolution and rotation is 1:2 (one circle of revolution will make two circles of rotation). As for the functions of epicyclical motion, the milling balld and milling samples inside the jars impact with each other under the functions of eccentricity, and break up, grind and mix testing samples.

working-principle-of-ball-mill

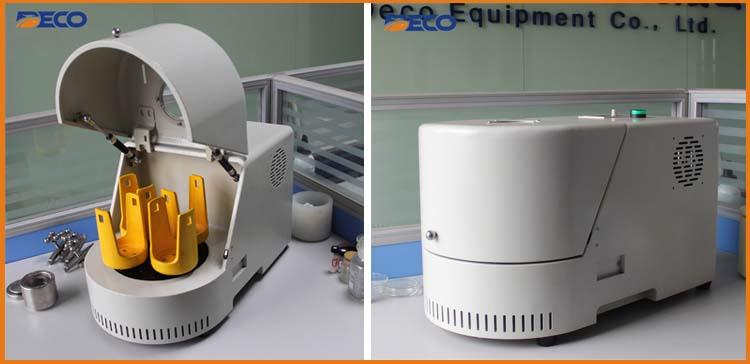

未标题-1

Specifications:

Product name	Micro powder grinding planetary ball mill
Item No.	DECO-PBM-V-0.4L
Power	0.25KW
Voltage	AC220V, 50Hz/ AC110V, 60Hz
Input size	Soil material<10mm, other materials<3mm
Output size (depend on materials)	Most materials 2-10μm, some materials like clay<0.5μm.
Net weight/ Gross weight	30KG/ 38KG
Ball mill size	502×300×298 mm.
Ball mill jar capacity	50ml, 100ml

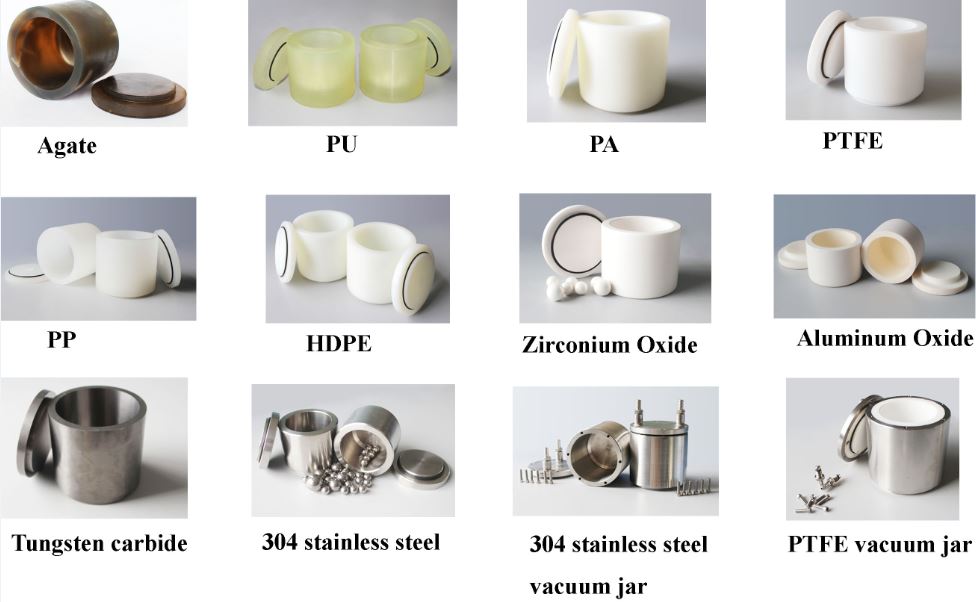

Ball mill jar material	304 stainless steel, agate, nylon, PU,PTFE, tungsten carbide (YG8), Alumina, zirconia, etc.
Vacuum ball milling jars	Stainless steel vacuum jar stainless steel vacuum cover (used together with ball milling jars of agate, nylon and PTFE, etc. for pumping vacuum).
